TRANSISTORS

MPSA92, -500mA, -300V TO-92 Package PNP Darlington Transistors pack of 10pcs

Specification

1. Package Type: TO-92
2. Transistor Type: PNP Darlington
3. Max Collector Current (IC): -500 mA
4. Max Collector-Emitter Voltage (VCE): -300V
5. Max Collector-Base Voltage (VCB): 30V
6. Max Emitter-Base Voltage (VEBO): 10V
7. Max Collector Dissipation (Pc): 625 milliwatts
8. Max Transition Frequency (fT): 50 MHz
9. Minimum & Maximum DC Current Gain (hFE): 5000
10. Max Storage & Operating temperature Should Be: -55 to +150 Centigrade

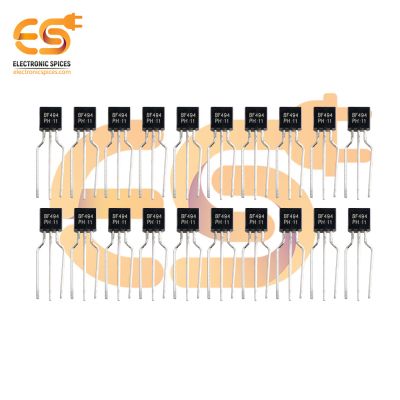

BF494 Medium frequency NPN transistors box of 2000pcs

Specification:-

1. Transistor type  :  Medium frequency NPN transistor
2. Collector-Base Voltage  :  30V
3. Collector-Emitter Voltage  :  20V
4. Emitter-Base Voltage  :  5V
5. Continuous Collector Current  :  30mA

C2060 low power NPN transistors pack of 100pcs

Specification:-

1. Transistor type  :  NPN transistor
2. Collector-base breakdown voltage  :  40V
3. Collector-emitter breakdown voltage  :  32V
4. Emitter-base breakdown voltage  :  5V
5. DC current gain  :  400

C945, 150mA, 50V TO-92 Package General purpose NPN transistor pack of 10pcs

Specification:-

• Type:   Transistor
• Polarity:   NPN
• Collector - Emitter voltage:  50 volts
• Collector current:   -150 mA
• Power Consumption : 400 mW
• F(t) minimum:  200 MHz
• Package: TO-92

2N3904 Bipolar General purpose NPN transistor packs of 100pcs

Specification

1. Transistor type  : Bipolar NPN Transistor
2. DC Current Gain  :  300
3. Continuous Collector current  :  200mA
4. Base- Emitter Voltage  :  6V
5. Collector-Emitter Voltage  :  40V
6. Collector-Base Voltage  :  60V

TIP122 Medium power Darlington pair NPN transistors box of 100pcs

Specification:-

1. Transistor type  :  Medium power Darlington pair NPN Transistor
2. High DC Current Gain  :  1000
3. Continuous Collector current  :  5A
4. Collector-Emitter voltage  :  100V
5. Collector-Base voltage  :  100V
6. Emitter Base Voltage  :  5V

KSC2331 bipolar NPN low frequency transistor pack of 20pcs

Specification:-

1. Transistor type  : bipolar NPN transistor
2. Collector-Emitter Voltage  :  60V
3. Collector-Base Voltage  :  80V
4. Emitter-Base Voltage  :  8V
5. Collector Current  :  700 mA
6. DC Current Gain  :  40 to 240

BD140 General purpose PNP transistor packs of 100pcs

Specification:-

1. Transistor Type  :  PNP transistor
2. Max Collector Current  :  -1.5A
3. Max Collector-Emitter Voltage  :  –80V
4. Max Collector-Base Voltage  :  –80V
5. Max Emitter-Base Voltage  :  –5V

13003 High voltage NPN transistor packs of 100pcs

Specifications

1. Transistor type  :  High voltage NPN transistor
2. Max Collector Current  :  5A
3. Max Collector-Emitter Voltage  :  400V
4. Max Collector-Base Voltage  :  700V
5. Max Emitter-Base Voltage  :  9V
6. Max Collector Dissipation  :  40W

BC857, -100mA, -45V TO-92 Package General purpose PNP transistor pack of 10pcs

Specification

1. Type:   Transistor
2. Polarity:   PNP
3. Collector - Emitter voltage:  -45 volts
4. Collector current:   -100 mA
5. Gain H(fe):  110/800
6. Power dissipation:  625 mW
7. F(t) minimum:  100 MHz
8. Package: TO-92
9. Max Storage & Operating temperature Should Be: -55 to +150 Centigrade

BD139 Medium power NPN transistor packs of 100pcs

Specification:-

1. Transistor type  :  Medium power NPN transistor
2. Continuous collector current  :  1.5A
3. Collector-Emitter voltage  :  80 V
4. Collector-Base voltage  :  80V
5. Emitter Base Breakdown Voltage  :  5V
6. DC current gain  :  40 to 160

BF442 General purpose NPN transistor pack of 20pcs

Specification:-

1. Transistor type  :  NPN transistor
2. Collector-Emitter Voltage  :  250V
3. Collector-Base Voltage  :  250V
4. Emitter-Base Voltage  :  5V
5. Collector Current  :  0.05A
6. Collector Dissipation :  0.8W
7. DC Current Gain  :  50
8. Transition Frequency  :  60MHz
