SENSOR MODULES

MPR121 V12 Capacitive touch sensor controller module

Specification:-

1. Operating voltage  :  2.5V to 3.6V DC
2. 29μA supply current at 16ms sample period
3. Shutdown current  :  3μA
4. 12 electrodes
5. Operating temperature range  :  -40°C to +85°C

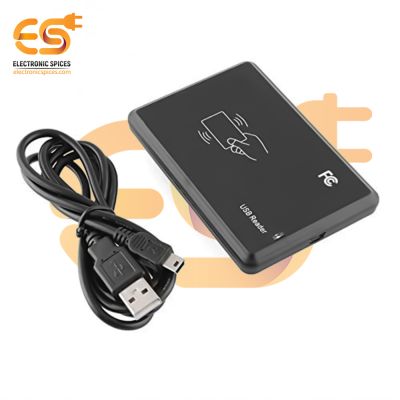

JT308 125KHz USB Proximity Sensor Smart RFID ID Card Reader

Specification:-

• Model: JT308
• Frequency: 125Khz.
• Power input: Through usb
• Support for EM4100 cards
• Interface: USB, 106bit / s, no additional driver required.
• Read the first 10 digits of the RFID/Proximity card.

MQ-5 Gas leakage detection sensor module

Specifications:-

1. Working voltage: 3V to 5V
2. Detecting concentration: 10000ppm
3. Sensing Resistance: 60kΩ
4. Heating consumption: 800mW

KY009 3 Color SMD RGB LED sensor module

Specification:-

1. Operating voltage  :  5V
2. Forward current  :  30mA max.
3. Operating temperature  :  -25 °C to 85 °C
4. You can regulate the brightness of the LEDs via pulse-width modulation.
5. Primary colors  :  red, blue, green.

RS485 12-24V PH Soil Detector Moisture Sensor

Specification:-

• Type: Soil Moisture Sensor
• Power Supply: 12-24V Dc
• Soil temperature: -40-80°C
• Soil temperature: ±0.5°C
• Conductivity: ±5%
• NPK: ±2%FS
• Soil temperature: 0.1°C
• Conductivity: 1us/cm

DHT 22/AM2302 Digital Temperature and Humidity Sensor

Specification:-

• Model: AM2302
• Supply Voltage: 3.3 to 5V
• Current: 5mA
• Humidity Range: 0-100%
• Humidity Accuracy: 2-5%
• Temperature Range: -40 to 80°C
• Temperature Accuracy: 0.5°C
• Sampling Rate: 0.5 Hz (Once every 2 seconds)

GSR Galvanic Skin Response Module Current Sensor Kit V2.0

Specifications:-

• Input Voltage: 3.3-5V
• Working Current: 1mA
• Output Signal: Analog voltage corresponding to skin conductance
• Electrodes: Reusable, easy-to-attach skin electrodes
• Interface: Analog output to microcontroller ADC

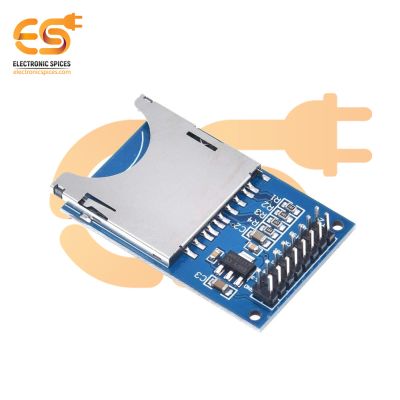

Micro SD Card Reader Module

Specification :-

• Input Voltage: 3.3V/5V
• Current: 0.2~200mA
• Working voltage: VCC 4.5~5.5V
• Micro SDHC up to 32GB
• Supports Micro SD up to 2GB
• Pinouts: GND, VCC, MISO, MOSI, SCK, CS; SPI
• Micro SD Card Slot: Supports standard micro SD cards

Liquid PH 0-14 Value Detection Regulator Sensor Module

Specification:-

• PH range: 0-14 pH
• Heating voltage: 5±0.2V
• Working current: 5-10mA
• The response time: ≤ 5S
• Stability time: ≤ the 60S
• Power consumption: ≤ 0.5W
• Temperature range: 0-60°C

TCRT5000 Dual Channel Line Tracking sensor module

Specifications:-

1. Module model : TCRT5000
2. Working voltage : DC 3.5V to 5V
3. Output channel : 0/1
4. Detect distance : 1-25mm
5. Focal distance : 2.5mm
6. IC name : LM393
7. Inbuilt indicator light
8. Also, built in potentiometer for sensitivity

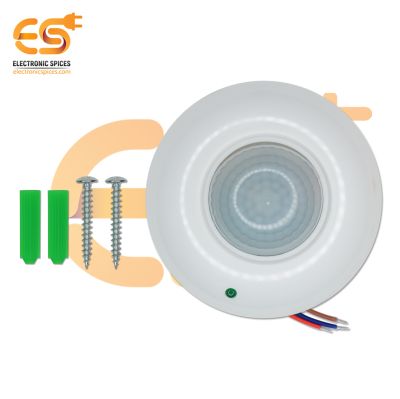

100-265 AC 200W/1200W Infrared Motion Sensor Switch

Specification:-

• Power source: 100-265V AC
• Power consumption: 0.5W (static 0.1W)
• Detection speed: 0.6 ~1.5m/s
• Time setting: Min: 10±2sec
• Max: 7±2min(adjustable)
• Light-control: <10~2000LUX(adjustable)
• Detection range: 6m Max (24°C)
• Detection angle: 120°(side view)360°(top view)
• Installation height: 2.5m~3.5m;
• Working temperature: -10°C~+40°C
• Working humidity: <93%RH

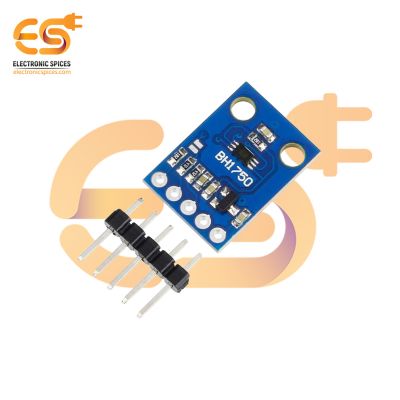

BH1750 - Light detection or Lux sensor module

Specifications:-

1. Power Supply : 2.4V-3.6V
2. Less current consumption : 0.12mA
3. Measuring Range : 1 - 65535lx
4. Very small effect of IR radiation
5. Responsive near to the human eye.
