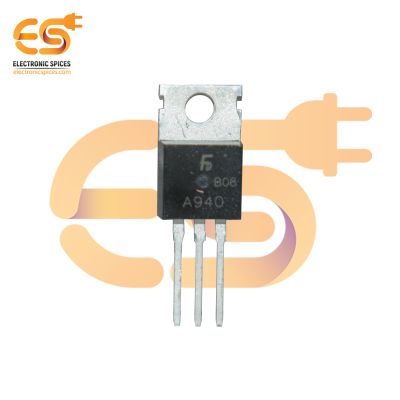

2SA940 Transistor Silicon PNP Triple Diffused Type (TO-220) Package
Specification:-
- Type Designator: A940
- Material of Transistor: Si
- Polarity: PNP
- Maximum Collector Power Dissipation (Pc): 25 W
- Maximum Collector-Base Voltage |Vcb|: 150 V
- Maximum Collector Current |Ic max|: 1.5 A
SKU: SI8541A
2SA940 Transistor Silicon PNP Triple Diffused Type (TO-220 Package)
Three semiconductor layers make up the structure of the transistor known as the Transistor Silicon PNP Triple Diffused Type. These three layers of silicon—the base, the emitter, and the collector—are semiconductors that are utilized to build this kind of transistor. The majority of applications for this kind of transistor are in radio frequency. This silicon transistor has three diffused junctions and is of the PNP type. It is a passive component that is frequently found in circuits for amplification of high-frequency signals. One product made of silicon intended for use in circuits is the Transistor Silicon PNP Triple Diffused Type. Three layers of silicon and metal make up the transistor. One kind of junction transistor is this one. A device called the Transistor Silicon PNP Triple Diffused Type uses the difference in conductivity between germanium and silicon to amplify signals. This is a triple-diffused PNP transistor made of silicon. It is an apparatus that regulates the current that goes to electronic devices. This apparatus is used in circuits to control and enhance current.
Application:-
- DC motor speed control
- Lighting systems
- PWM applications
- Relay drivers
