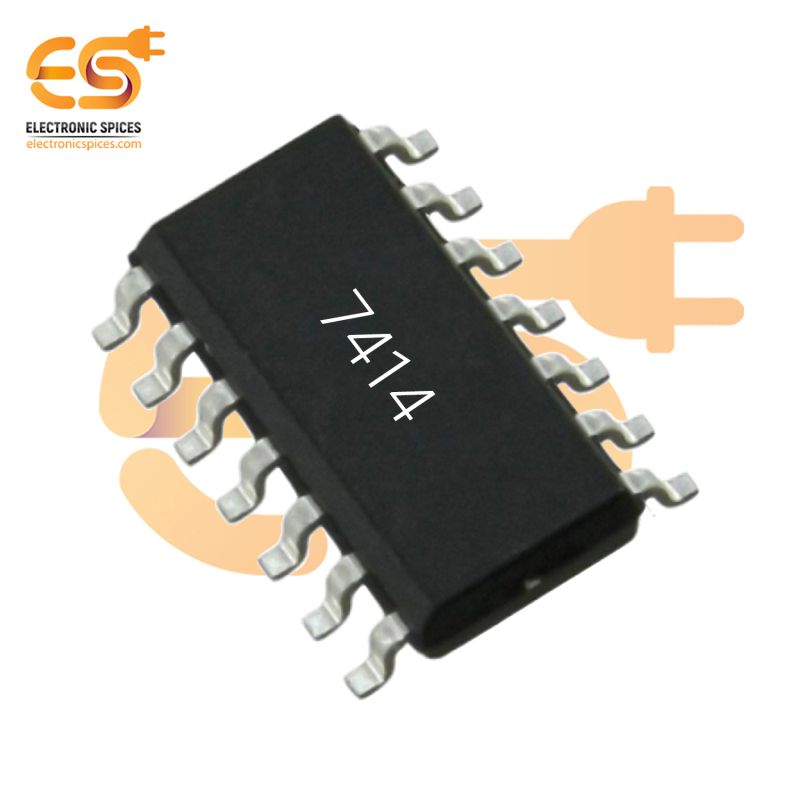

7414 – Hex Schmitt Trigger SMD IC

7414 – Hex Schmitt Trigger SMD IC

The 7414 Hex Schmitt Trigger SMD IC is a versatile, reliable component widely used in digital electronics for its ability to convert noisy or irregular input signals into clean, square waveforms. This Schmitt Trigger IC, in surface-mount device (SMD) format, consists of six independent inverters with Schmitt Trigger characteristics, ideal for applications requiring signal conditioning, debouncing, or waveform shaping. It is commonly used to enhance the stability of digital circuits by eliminating noise and unwanted fluctuations in input signals. Each of the six inverters in the 7414 IC includes a Schmitt Trigger, which provides hysteresis, meaning it has two distinct threshold voltages for switching from high to low and vice versa. This hysteresis property allows the 7414 to “clean up” slow or noisy signals, ensuring stable transitions even when input signals fluctuate within a certain range. When a signal rises above a specific high threshold, the output goes low, and when it drops below a low threshold, the output goes high. This characteristic makes it invaluable in scenarios like button debouncing, where it effectively removes mechanical noise, or as a waveform generator to produce clean, consistent pulses.

Features:-

• High-Speed Operation
• Wide Operating Voltage Range
• Low Power Consumption
• Compact SMD Package
• Hex Schmitt Trigger Inverter
