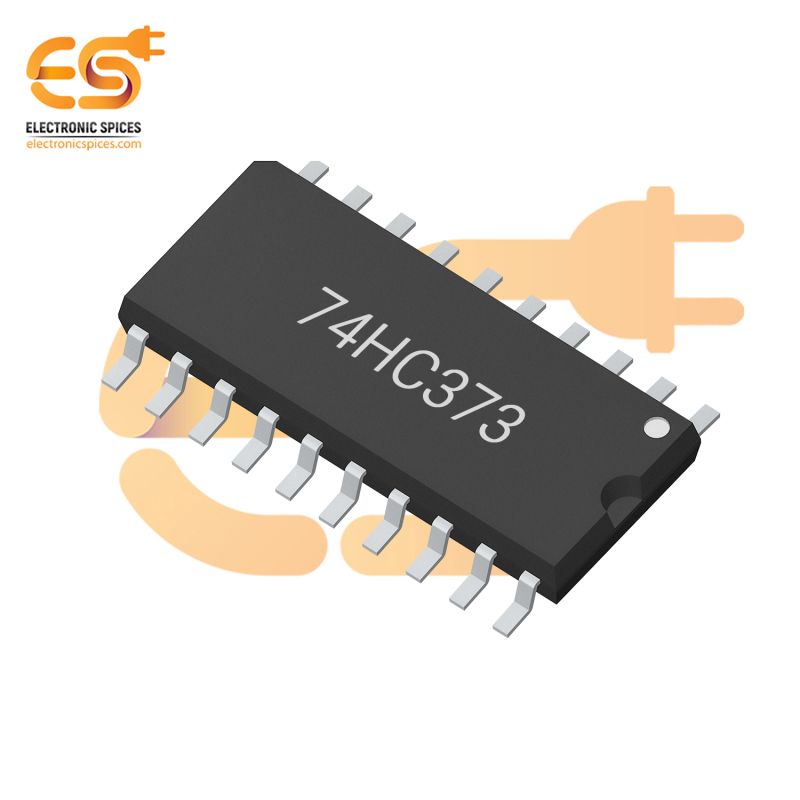

74HC373 Octal D-Type Latch 3-State Outputs IC SMD IC
Specification:-
- Low input current: 1 µA
- Power Dissipation: 500 mW
- Typical propagation delay: 18 ns
- Supply Voltage: − 0.5 to + 7.0V
- DC Input Voltage: − 1.5 to VCC + 1.5V
- DC Output Voltage: − 0.5 to VCC + 0.5V
- Temperature Range: − 65°C to + 150°C
SKU: PL8501A
74HC373 Octal D-Type Latch 3-State Outputs IC SMD IC
The 74HC373 is an Octal D-Type Latch IC with 3-state outputs, available in an SMD package, designed for efficient data storage and transfer in digital systems. This IC has eight D-type latches that can store and latch input data, making it ideal for applications requiring data retention and controlled output release. Each latch is controlled by an enable pin, which when activated, captures the input data and holds it until the enable signal changes. The 3-state outputs allow multiple 74HC373 ICs to be connected on a single bus, as each output can be set to high, low, or high-impedance states, enabling easy communication without interference. Operating over a wide voltage range of 2V to 6V, the 74HC373 is compatible with both TTL and CMOS devices. Its fast switching times make it suitable for applications where timing is crucial, like memory address latching, buffer registers, and microprocessor systems. The IC is commonly used in systems where bus driving capability is necessary, as it can isolate output lines to prevent data conflicts.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Low Power Consumption
- Compact SMD Package
- Latch Enable Control
