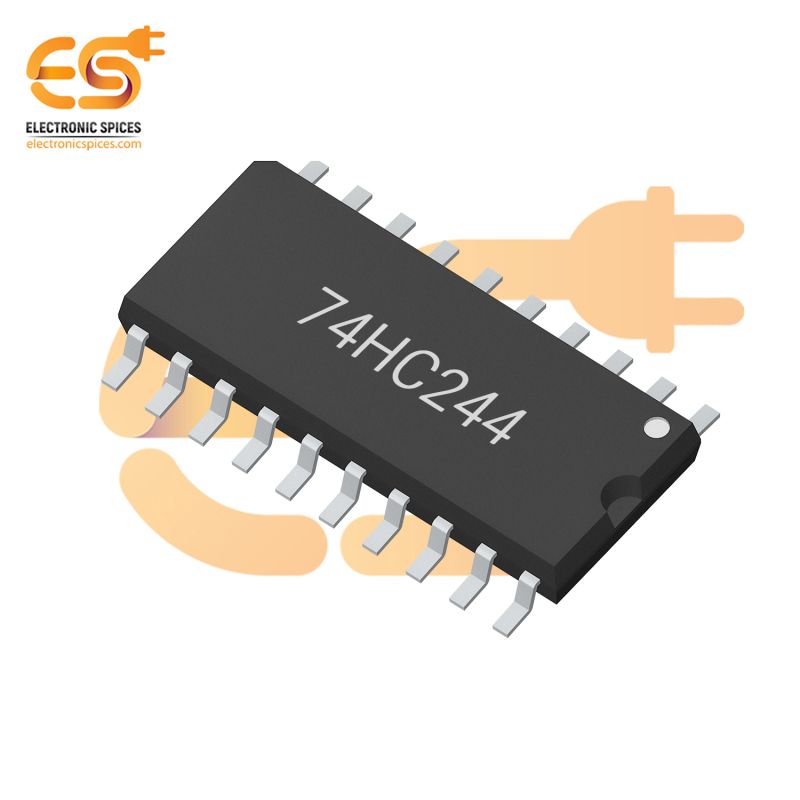

74HC244 Octal Buffer/Line Driver with Tri-State Output SMD IC
Specification:-
- Mounting: SMD
- Supply Voltage: 7V
- Input Voltage: 7V
- Typical propagation delay: 12 ns
- Typical operating frequency: 50 MHz
- Temperature Range: -65°C to 150°C
- Typical IOL (sink current) 24 mA
- Typical IOH (source current) −15 mA
SKU: BM8501A
74HC244 Octal Buffer/Line Driver with Tri-State Output SMD IC
The 74HC244 Octal Buffer/Line Driver with Tri-State Output SMD IC is an efficient, high-speed buffer and line driver designed for improved signal integrity and controlled data flow within digital circuits. This IC is particularly useful in applications that require data to be transmitted over long lines or to multiple outputs, such as in microcontroller-based systems, memory addressing, and communication buses. With its tri-state output capability, the 74HC244 allows devices to share a common data bus without interfering with each other, enabling flexible and efficient data handling. The 74HC244 contains eight non-inverting buffer gates arranged in two 4-bit sections, each with an enable input. This configuration allows independent control over each section, enabling selective buffering for specific data lines. The tri-state outputs provide high-impedance states, which allow for easy integration into systems with shared buses by effectively "disconnecting" the IC from the bus when not needed. The result is a streamlined, interference-free data transmission, essential for complex digital circuits. Operating in a voltage range from 2V to 6V, the 74HC244 is compatible with various logic systems and ideal for standard TTL applications.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Low Power Consumption
- Compact SMD Package
- Octal Buffer/Line Driver
- Independent Control for Two 4-Bit Sections
