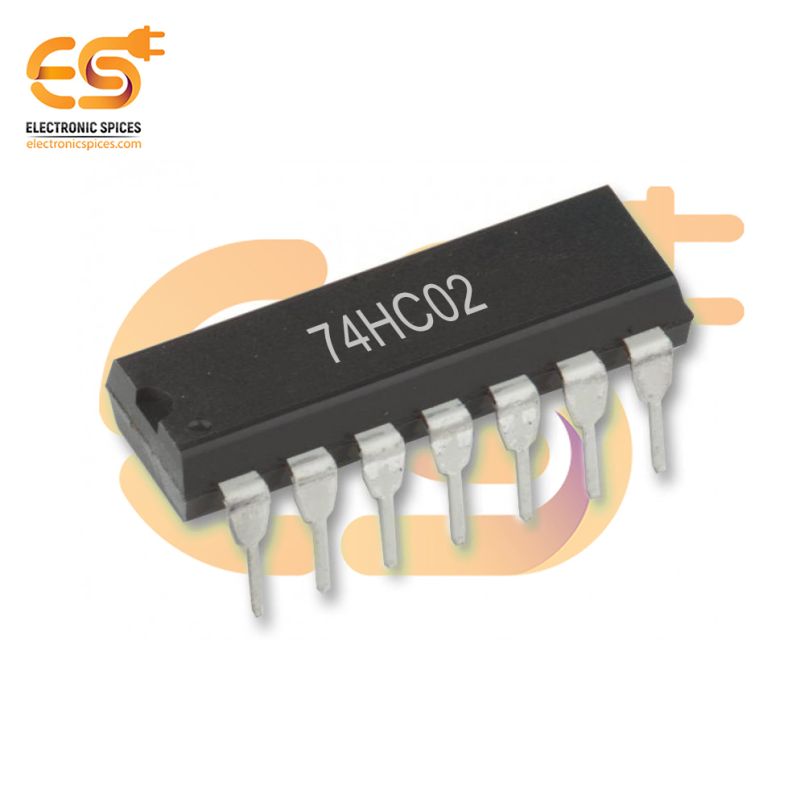

74HC02 Quad 2-Input NOR Gate IC DIP-14 Package

74HC02 Quad 2-Input NOR Gate IC DIP-14 Package

The 74HC02 is a Quad 2-Input NOR Gate IC available in a DIP-14 package, designed for a broad range of digital applications. Each IC contains four independent NOR gates, with each gate having two inputs and one output. The NOR gate is a fundamental digital logic gate, producing a high (1) output only when all inputs are low (0); otherwise, the output remains low (0). This makes the 74HC02 IC ideal for logic operations and signal processing in digital systems. The 74HC02 operates with high-speed CMOS technology, providing quick response times and efficient performance. It is compatible with both TTL and CMOS logic families, thanks to its flexible operating voltage range, typically from 2V to 6V. This versatility allows it to integrate seamlessly into various electronic circuits. In applications, the NOR gate functionality can be used for creating logic functions, signal inversion, control logic, and timing circuits. Each gate in the 74HC02 performs a logical NOR operation, which is useful in situations where combined conditions must be false to trigger an action. Additionally, the IC’s CMOS design results in low power dissipation, making it suitable for portable and battery-powered applications.

Features:-

• DIP-14 Package
• Low Power Consumption
• High-Speed Performance
• Wide Operating Voltage Range
• Four independent 2-input NOR gates in a single package
