Specification:-
- Number of pins: 16
- Propagation Delay: 16ns
- Current Rating: 5.2 mA
- Wide operating voltage range: 2 to 6V
- Operating Temperature (°C): − 40°C to + 85°C
SKU: GN8501A

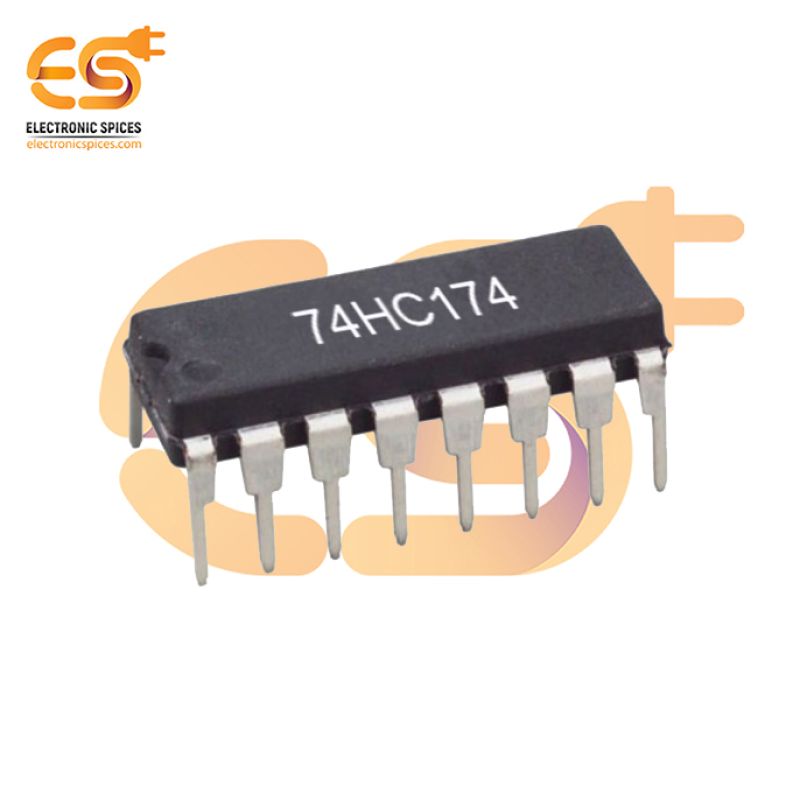

74HC174 Hex D-type Flip-Flop with Reset IC DIP-16 Package
The 74HC174 is a high-speed Hex D-type Flip-Flop with Reset IC, designed in a DIP-16 package, and based on CMOS technology. This IC features six D-type flip-flops, each capable of storing and transferring data upon receiving a clock pulse, making it ideal for data storage, signal processing, and synchronization applications in digital circuits. With six flip-flops integrated into a single IC, it’s widely used in various sequential logic applications, such as data registers, buffer storage, and temporary data holding in digital systems. Each flip-flop within the 74HC174 has a data (D) input, a clock (CP) input, an asynchronous reset (MR) input, and an output (Q) pin. Data present at the D input is transferred to the Q output upon the rising edge of the clock pulse, allowing precise timing control. If the reset pin (MR) is activated (logic low), all Q outputs are immediately reset to logic low, independent of the clock or data inputs. This asynchronous reset feature ensures that the outputs can be quickly reset at any time, which is valuable for initialization and error recovery processes. The 74HC174 operates with a wide supply voltage range, typically between 2V to 6V, making it suitable for a variety of digital systems, including mixed-voltage environments. Its low power consumption and high noise immunity make it reliable for applications that require stable operation in potentially noisy environments.
Features:-
- DIP-16 Package
- Low Power Consumption
- High-Speed Performance
- Wide Operating Voltage Range
- Hex D-type Flip-Flop
