Specification:-
- Number of pins: 20
- Propagation Delay: 46ns
- Current Rating: 5.2 mA
- Wide operating voltage range: 2 to 6V
- Operating Temperature (°C): − 55°C to + 125°C
SKU: BV8501A

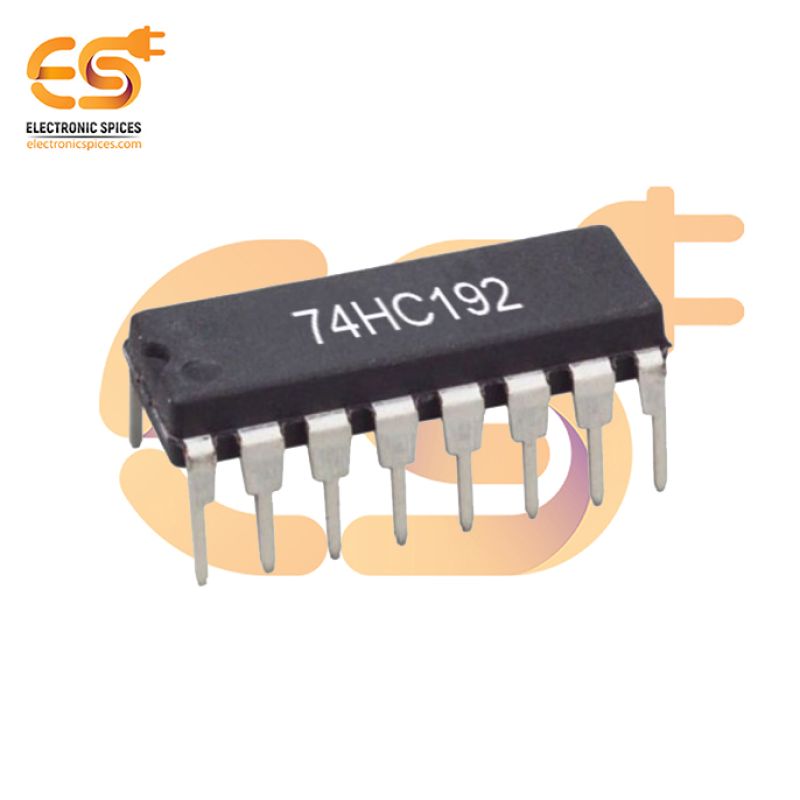

74HC192 Decade Up/Down Counter with Clear IC DIP-16 Package
The 74HC192 is a high-speed, CMOS-based Decade Up/Down Counter with Clear functionality, housed in a compact 16-pin DIP package. This versatile counter can count up or down between 0 and 9 in decimal (decade) mode, providing a wide range of applications in digital systems, including frequency division, event counting, and digital clocks. The 74HC192 has asynchronous clear and load features that enhance its flexibility and control over counting operations. This IC has dedicated up and down inputs, allowing it to count up or down based on external control signals. When a high signal is applied to the UP input, the 74HC192 increments the count, while a high signal on the DOWN input decrements it. An additional CLEAR input immediately resets the counter to zero, providing rapid initialization or reset functionality. The counter also has a LOAD input to preset the counter to a specified value, making it adaptable for applications needing a predetermined starting count. The 74HC192 outputs are in binary-coded decimal (BCD), providing a digital representation of the decimal count on four output pins. This BCD output can be fed to displays or other digital circuits for real-time monitoring or further processing.
Features:-
- DIP-16 Package
- Low Power Consumption
- High-Speed Performance
- Wide Operating Voltage Range
- Dual counting modes allow for flexible control
- Allows presetting of the counter to any specific value
- CMOS technology supports high-frequency applications.
