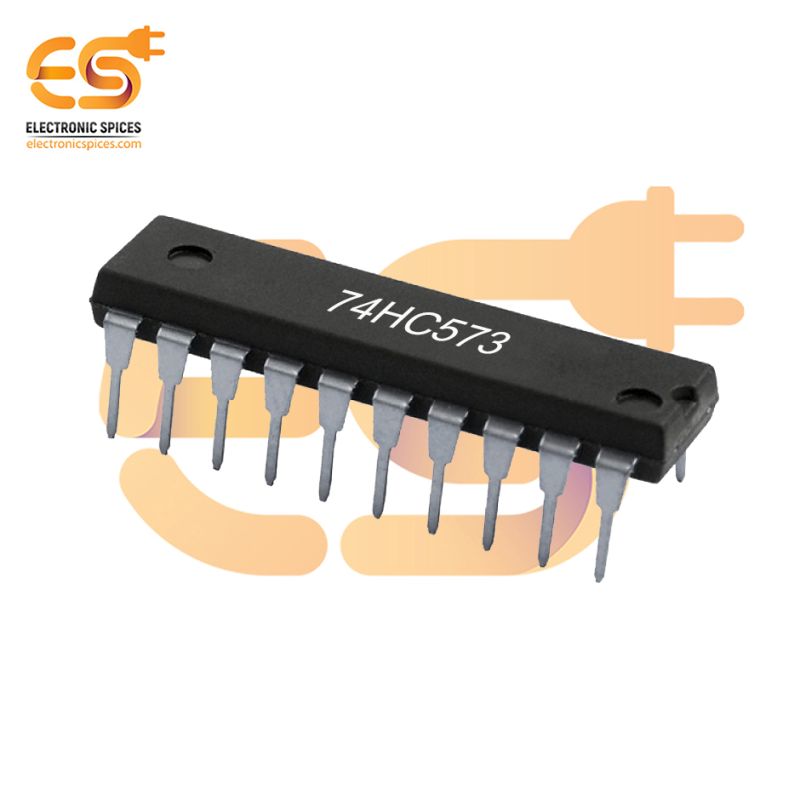

74HC573 Octal D-Type Transparent Latch IC DIP-20 Package
Specification:-
- Number of pins: 20
- Mounting: Through Hole
- Wide operating voltage range: 2V–6V
- Supply Voltage (VCC): − 0.5 to + 7.0V
- Input Voltage (VIN): −1.5V to VCC + 1.5V
- DC Output Current, per pin (IOUT): ± 35 mA
- DC VCC or GND Current, per pin (ICC): ± 70 mA
- Power Dissipation: 600 mW
- Operating Temperature (°C): − 65°C to + 150°C
SKU: PZ2605A
74HC573 Octal D-Type Transparent Latch IC DIP-20 Package
The 74HC573 Octal D-Type Transparent Latch IC in a DIP-20 package is a CMOS-based device designed to store and control 8 bits of data in high-speed digital circuits. It features eight transparent latches, where each latch holds a single bit of data, providing effective data management within complex systems. This IC has two primary control inputs: the Latch Enable (LE) and Output Enable (OE) pins. When the LE pin is active, the latch is transparent, allowing data at the input to flow directly to the output. Once LE goes low, the data is latched, remaining stable until LE is high again, ensuring data integrity during processing. The 74HC573 also features tri-state outputs controlled by the OE pin, enabling or disabling outputs based on external requirements. This tri-state function allows the IC to interface smoothly with other devices on a shared data bus, avoiding conflicts. Operating in a voltage range of 2V to 6V, it is compatible with both CMOS and TTL devices, making it a versatile component in microprocessor-based systems, memory address latching, and data buffering applications. With its fast switching capabilities, the 74HC573 is well-suited for applications requiring rapid data flow and precise output control.
Features:-
- DIP-20 Package
- Low Power Consumption
- High-Speed Performance
- Wide Operating Voltage Range
- 8-Bit (Octal) Transparent Latch
