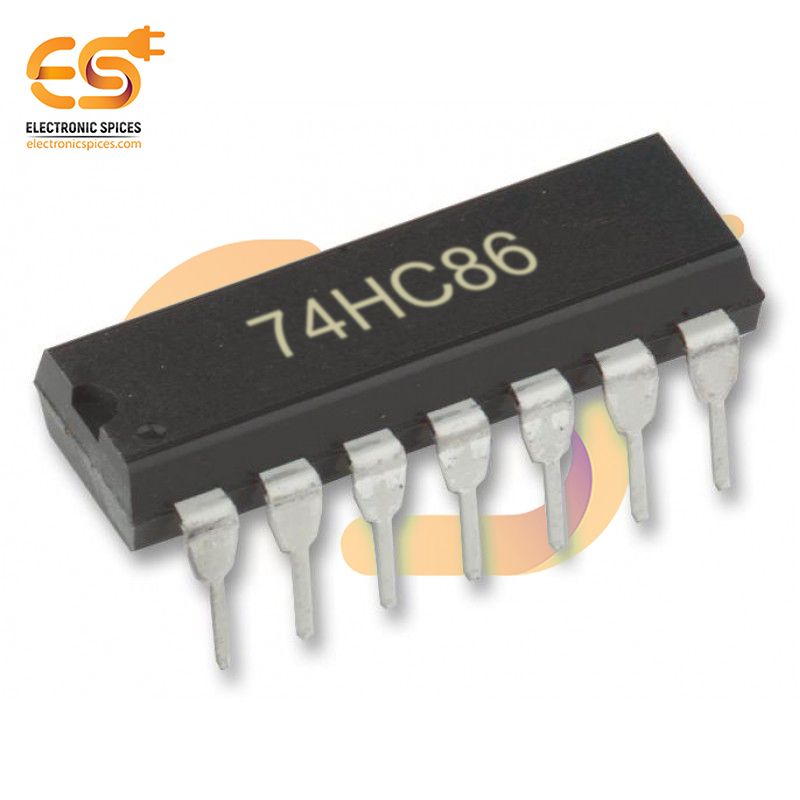

74HC86 Quad 2-Input EXOR Gate IC DIP-14 Package
Specification:-
- Number of pins: 14
- Gate IC Type: XOR
- Mounting: Through Hole
- Operating Voltage (V): 2 to 6
- Low Noise: VOLP = 0.8 V (Max)
- Input Clamping Current: ± 20 mA
- Operating Temperature (°C): -55°C ~ +125°C
SKU: GM2605A
74HC86 Quad 2-Input EXOR Gate IC DIP-14 Package
The 74HC86 Quad 2-Input EXOR (Exclusive OR) Gate IC in a DIP-14 package is a high-speed CMOS logic device designed for digital logic applications that require XOR operations. It contains four independent two-input XOR gates, each providing a HIGH output only when the number of HIGH inputs is odd typically when only one input is HIGH. This functionality makes the 74HC86 ideal for tasks involving bitwise comparisons, binary addition, parity generation, and digital signal processing. The 74HC86 IC operates across a wide voltage range of 2V to 6V, making it compatible with both CMOS and TTL logic families. Its high-speed CMOS technology ensures low power consumption while maintaining fast switching speeds. Additionally, the device has high noise immunity, which increases reliability in noisy digital environments.
Features:-
- DIP-14 Package
- Low Power Consumption
- High-Speed Performance
- Wide Operating Voltage Range
- Four Independent XOR Gates
