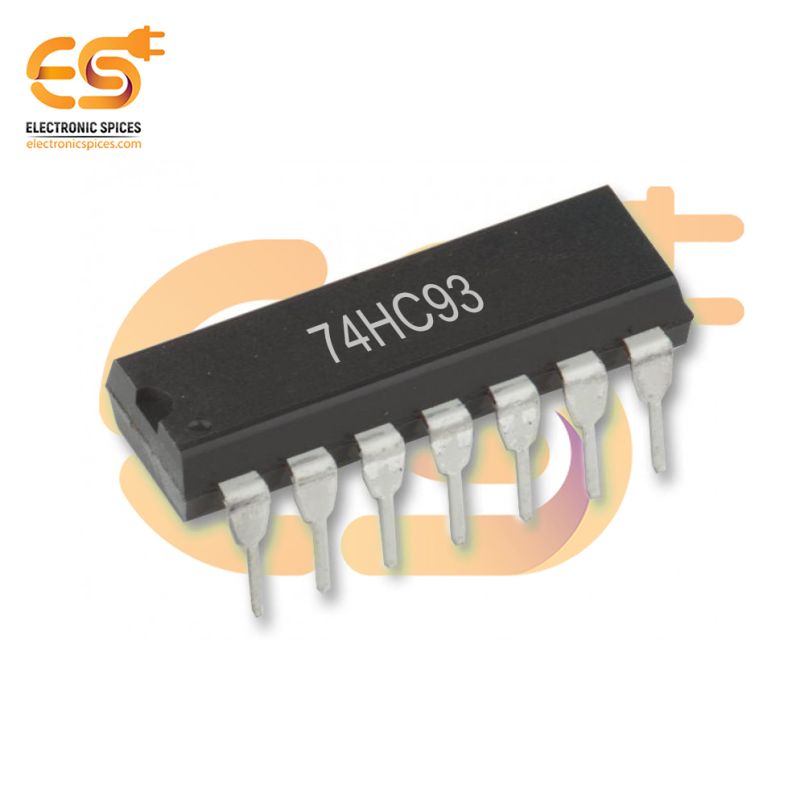

74HC93 4-Bit Binary Ripple Counter IC DIP-14 Package
Specification:-
- Number of pins: 14
- No. of Bits: 4
- Operating Voltage (V): 2 to 6
- Mounting Type: SMD/SMT
- ICC category: MSI
- Operating Temperature (°C): -55°C ~ +125°C
SKU: ZJ2605A
74HC93 4-Bit Binary Ripple Counter IC DIP-14 Package
The 74HC93 4-Bit Binary Ripple Counter IC, housed in a DIP-14 package, is a high-speed CMOS logic device designed for counting applications. This IC consists of a 4-bit binary counter that operates in a ripple-carry configuration, meaning that each flip-flop in the counter is triggered by the previous one. This design enables the IC to count binary sequences in a cascading fashion, making it ideal for applications that require asynchronous counting. The 74HC93 IC includes two separate sections that allow it to function either as a divide-by-2 and divide-by-8 counter or as a complete divide-by-16 counter, depending on the external wiring. This flexibility is achieved with a combination of 4 flip-flops arranged for binary counting. Designed for compatibility with CMOS and TTL logic, the 74HC93 operates at typical voltages ranging from 2V to 6V, which allows it to be used in various digital applications.
Features:-
- DIP-14 Package
- Low Power Consumption
- High-Speed Performance
- Wide Operating Voltage Range
- 4-Bit Binary Ripple Counter
- Flexible Dividing Function
