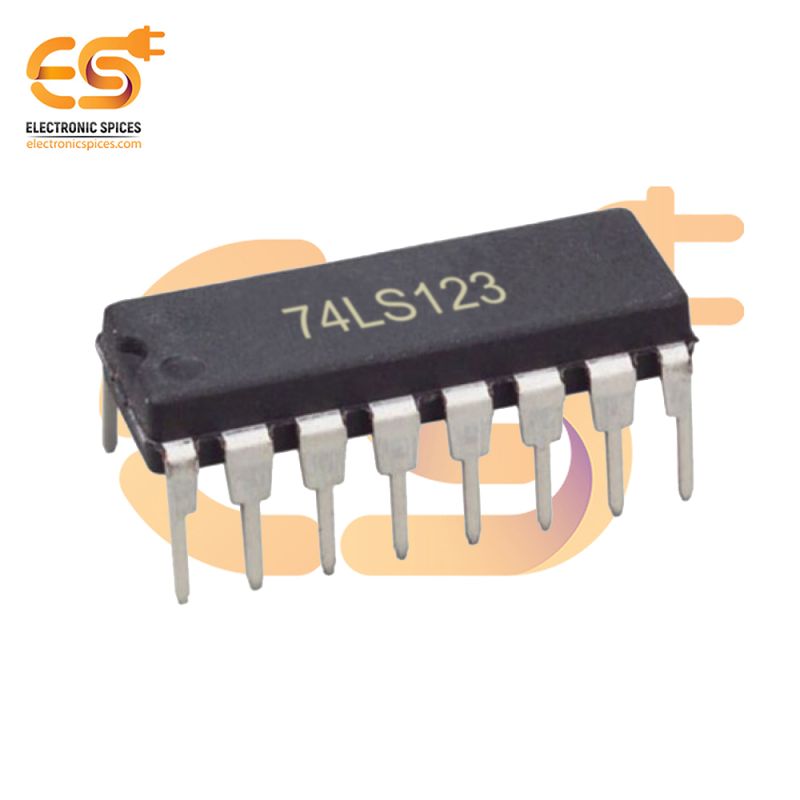

74LS123 Dual Retriggerable Monostable Multivibrator IC DIP-16 Package
Specification:-
- Number of pins: 16
- SVoltage Rating: 4.75 to 5.25V
- Propagation Delay: 23ns
- Current Rating: 8mA Output Current
- Multivibrator Type: Retriggerable Monostable
- Operating free-air temperature range: 0°C to +70°C
SKU: CO9018A
74LS123 Dual Retriggerable Monostable Multivibrator IC DIP-16 Package
The 74LS123 Dual Retriggerable Monostable Multivibrator IC in a DIP-16 package is a versatile component used for pulse generation and timing applications. Each of the two independent monostable multivibrators within the IC can produce a precise, timed output pulse when triggered. The output duration is controlled by external timing components, usually a resistor and a capacitor, and is adjustable over a wide range. What makes the 74LS123 unique is its retriggerable nature; if it receives additional trigger signals before the output pulse has completed, the pulse duration is extended, making it ideal for applications requiring stable and flexible timing. Each monostable multivibrator within the IC has its own control input, allowing for independent operation. This IC operates on TTL logic, making it compatible with other TTL components in digital systems. The 74LS123 is designed for reliable operation over a range of power supply voltages, typically 5V, and is commonly found in pulse-width modulation (PWM) circuits, frequency counters, delay circuits, and signal synchronization.
Features:-
- DIP-16 Package
- Low Power Consumption
- High-Speed Performance
- Wide Operating Voltage Range
- Dual Monostable Multivibrators
- External Timing Control
