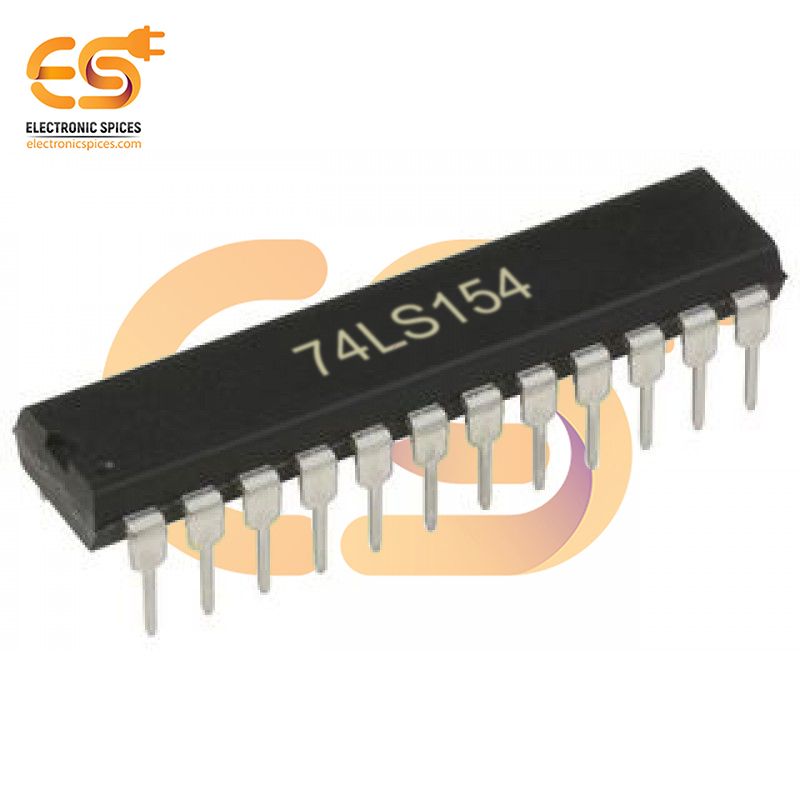

74LS154 4-Line to 16-Line Decoder/Demultiplexer IC DIP-24 Package
Specification:-
- Number of pins: 24
- Supply Voltage (VCC): 7 V
- Input Voltage (VI): 7 V
- Operating free-air temperature range: 0°C to +70°C
- Storage temperature range: -65°C to +150°C
- Typical power dissipation 45 mW
SKU: OU9018A
74LS154 4-Line to 16-Line Decoder/Demultiplexer IC DIP-24 Package
The 74LS154 4-Line to 16-Line Decoder/Demultiplexer is a digital IC that enables the selection of one output from 16 possibilities based on a 4-bit binary input. Packaged in a DIP-24, this IC is widely used in digital circuits that require decoding functions, such as memory address decoding and demultiplexing in data routing. The 74LS154 takes four binary inputs (A, B, C, and D) and decodes them into one of 16 active-low outputs. The selected output is set to low while all other outputs remain high, making it highly effective for activating specific components in a sequence. The IC also features two enable inputs, which allow you to control whether the outputs respond to the binary input values. When both enable inputs are set to low, the IC is activated and functions as a decoder; if either enable input is high, all outputs will remain high, effectively disabling the IC. With a fast response time and low power consumption, the 74LS154 is reliable in complex digital systems that require quick address decoding and low power draw. It is TTL-compatible, making it easy to integrate with other logic circuits.
Features:-
- DIP-24 Package
- Low Power Consumption
- High-Speed Performance
- Wide Operating Voltage Range
