Specification:-
- Number of pins: 16
- Supply Voltage: 4.75 to 5.25V
- Output Current (High): 16mA
- Output Current (Low): 70mA
- Operation free-air temperature: -5.2°C
SKU: LQ9018A

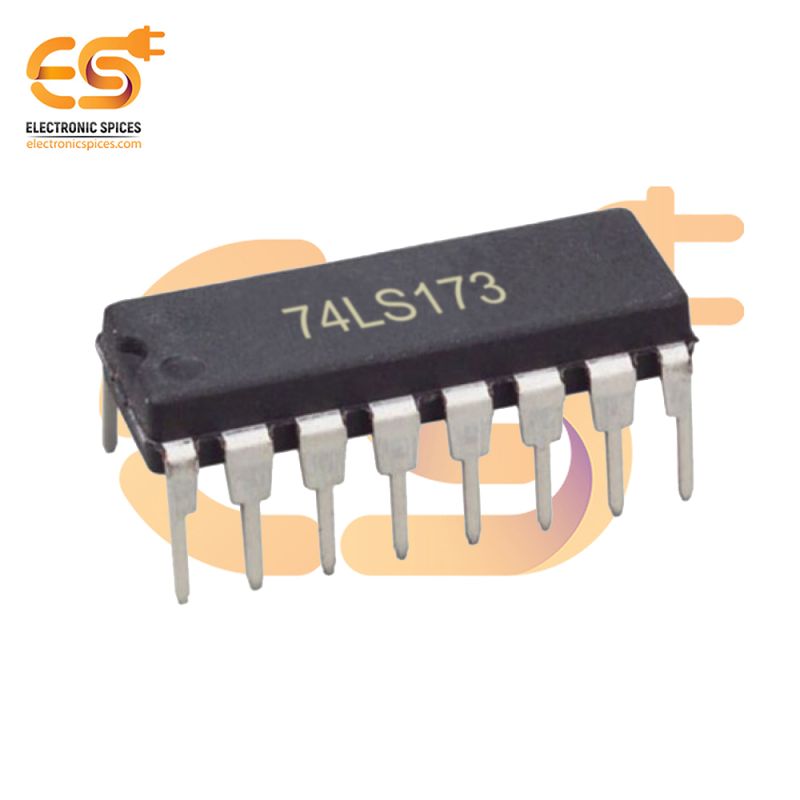

74LS173 4-bit D-type Registers with 3-State Output IC DIP-16 Package
The 74LS173 4-bit D-type Register with 3-State Output is a versatile digital IC used in various data storage and transfer applications. This IC includes four D-type flip-flops with a clock enabled for synchronous operation, allowing each flip-flop to store one bit of data. Its outputs can be set to three states—high, low, or high impedance—enabling easy integration into systems with shared data lines without causing interference. In the DIP-16 package, the 74LS173 features a 3-state output control, allowing the IC to disconnect its outputs from the circuit when not in use. This is especially useful in applications requiring multiple ICs on the same data bus, as it prevents bus contention and ensures data integrity. The 74LS173's clock and enable inputs provide a synchronized control over data latching, allowing precise timing in digital circuits. Other features include compatibility with TTL logic levels, which makes it easy to interface with other 74LS series components, low power consumption, and a robust design that ensures stable operation.
Features:-
- DIP-16 Package
- Low Power Consumption
- High-Speed Performance
- Wide Operating Voltage Range
