Specification:-
- Number of pins: 16
- Supply Voltage: 4.5 to 5.5V
- Output Current: -0.4 to 8mA
- Temperature range: –55°C to +125°C
- High Speed 40 MHz Typical Count Frequency
SKU: KG9018A

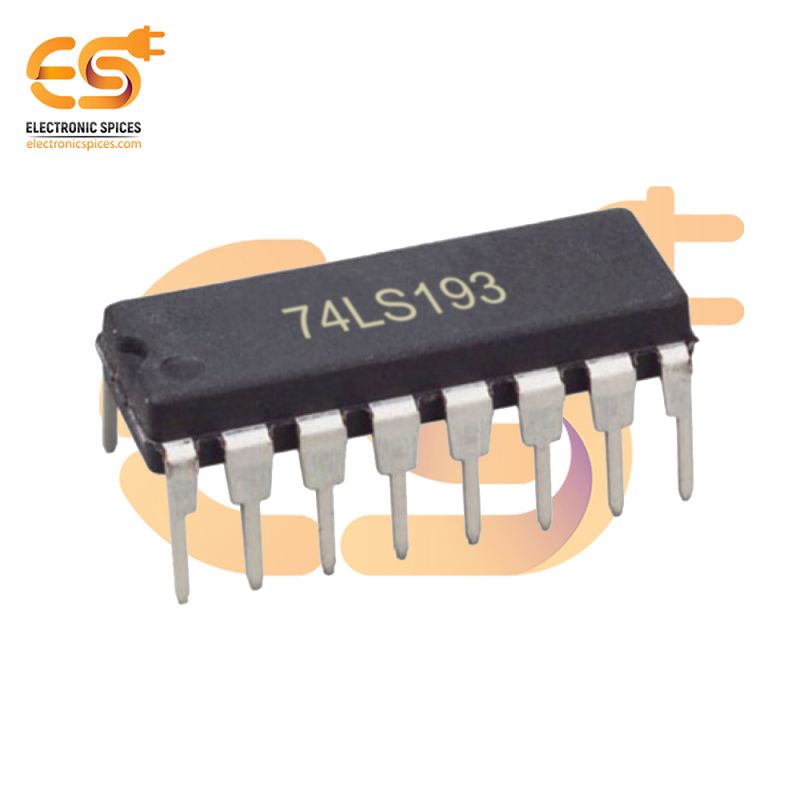

74LS193 Binary Up/Down Counter with Clear IC DIP-16 Package
The 74LS193 Binary Up/Down Counter with Clear in a DIP-16 package is a versatile 4-bit synchronous binary counter capable of counting both upwards and downwards. Designed with asynchronous reset (clear) and preset functions, it provides flexibility in digital counting applications. The 74LS193 can be used in a wide range of electronic systems where binary counting is essential, such as digital clocks, frequency dividers, event counters, and various timing circuits. This IC is highly valued for its fast performance and low power consumption, typical of the 74LS logic family. Each clock pulse on the up or down clock input increments or decrements the count, depending on which input receives the pulse. The IC also includes asynchronous load inputs that allow the user to preset the counter to any desired value. Its asynchronous clear feature allows the counter to reset to zero instantly, which is particularly useful in systems requiring immediate reset capabilities. Additionally, the counter outputs are TTL compatible, making integration into TTL-based systems seamless.
Features:-
- DIP-16 Package
- Low Power Consumption
- High-Speed Performance
- Wide Operating Voltage Range
- PNP inputs reduce DC loading on bus lines
