74LS32 Quad 2-Input OR Gate IC DIP-14 Package

74LS32 Quad 2-Input OR Gate IC DIP-14 Package

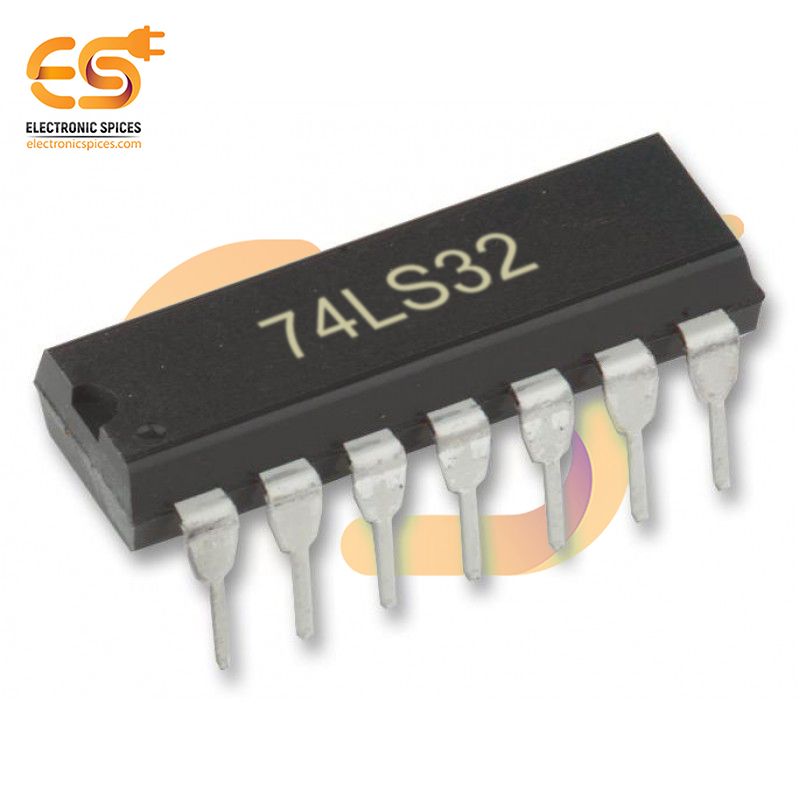

The 74LS32 Quad 2-Input OR Gate IC is a versatile and essential component in digital logic circuits, designed to perform the logical OR operation on two input signals. Packaged in a DIP-14 format, this integrated circuit contains four independent 2-input OR gates, making it highly efficient for a range of applications where multiple OR operations are needed. The 74LS32 is built using low-power Schottky technology, which provides fast switching speeds and low power consumption, ensuring reliable performance in various electronic systems. With a propagation delay of typically 10 nanoseconds, it allows for rapid processing of digital signals, making it suitable for high-speed applications. The IC operates within a standard supply voltage range of 4.75V to 5.25V, aligning with TTL logic levels, which ensures compatibility with other TTL components. Each gate in the 74LS32 can handle standard logic levels, providing a high output when at least one of the inputs is high (logic 1). This functionality is fundamental in digital circuit design, enabling the implementation of complex logic functions by combining multiple gates. The quad configuration minimizes board space and simplifies circuit design by allowing multiple OR operations to be performed in a single package.

Features:-

• DIP-14 Package
• Low Power Consumption
• High-Speed Performance
• Open-collector outputs
• Wide Operating Voltage Range
