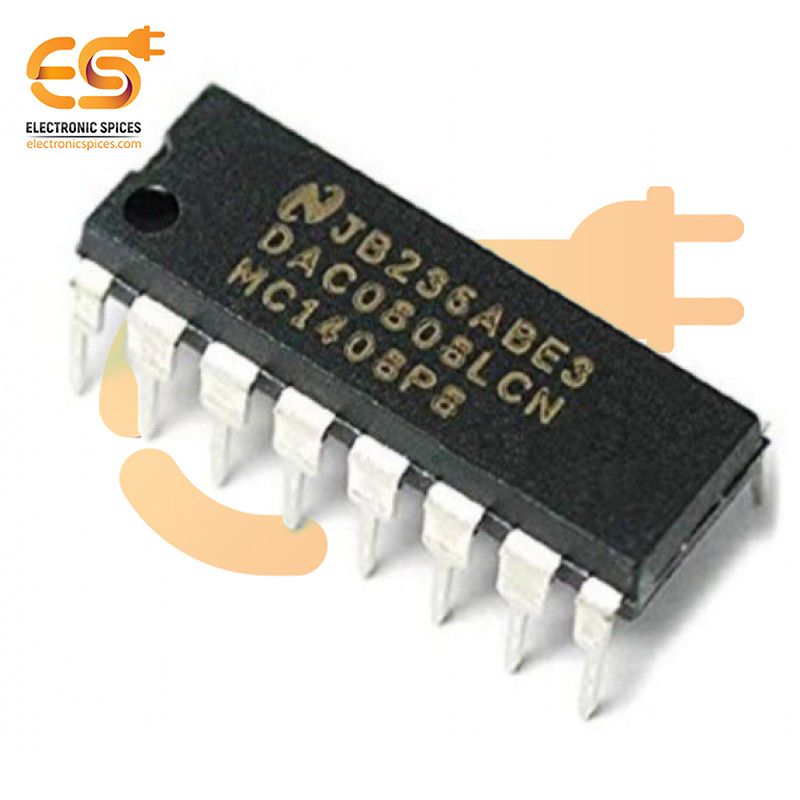

DAC0808 8-Bit Digital to Analog D/A Converter IC (DIP-16 Package)
Specification:-
- DAC channels: 1
- Architecture: Multiplying DAC
- Output type: Unbuffered Current
- Output range: 0 to 4.2mA
- Operating Temperature: 0°C to +70°C
- High speed multiplying input slew rate: 8 mA/µs
- Power supply voltage range: ±4.5V to ±18V
- Low power consumption: 33 mW @ ±5V
SKU: LE9102A
DAC0808 8-Bit Digital to Analog D/A Converter IC (DIP-16 Package)
The DAC0808 is an 8-bit Digital-to-Analog Converter (DAC) designed for high-speed and accurate digital-to-analog conversion, housed in a DIP-16 package. It provides a straightforward solution for converting 8-bit digital input signals into corresponding analog output levels, making it ideal for applications such as waveform generation, audio processing, and industrial control systems. The DAC0808 features a resolution of 8 bits, enabling 256 discrete output levels with excellent linearity and precision. It operates using a simple binary-weighted architecture that ensures a fast conversion process with a settling time typically less than 150 nanoseconds. This makes it suitable for high-speed applications requiring real-time performance. The IC supports both unipolar and bipolar output configurations, providing flexibility to suit different system requirements. It operates with a wide supply voltage range, typically ±5V to ±15V, and includes a reference current input that allows the output voltage range to be easily scaled. The DAC0808 also integrates internal current switches for reduced external component requirements.
Features:-
- Low Power Consumption
- On-chip sample and hold
- Noninverting digital inputs are TTL and CMOS-compatible
