Specification:-
- Input type: Single-Ended
- Interface: Parallel
- Power consumption: 15 mW
- Input range: 0 to 6V
- Multi-channel configuration: Multiplexed
- Temperature Range: -40°C to 85°C
SKU: QE9102A

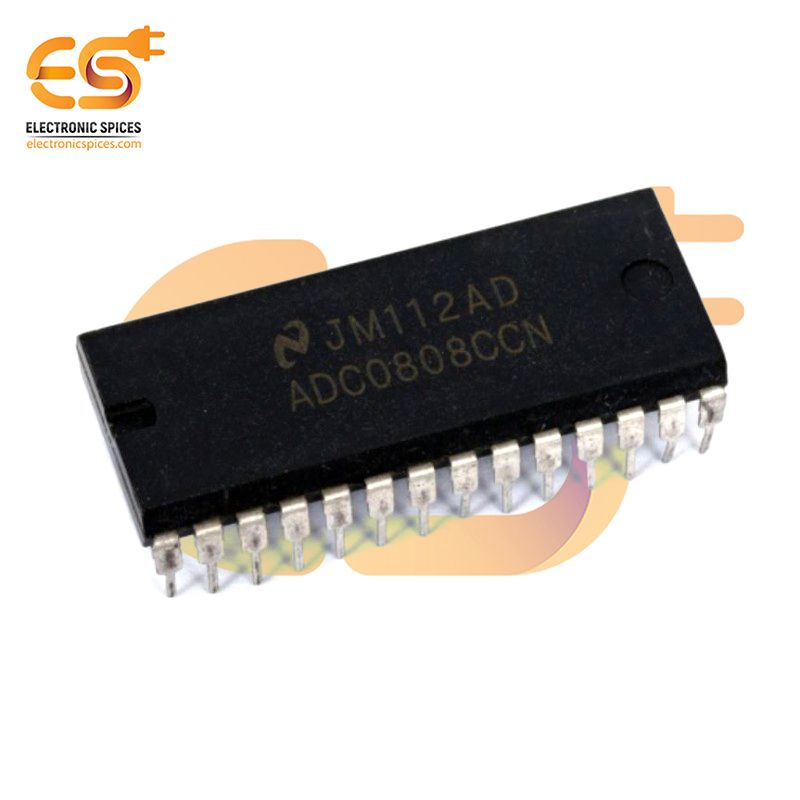

ADC0808 8-Bit A/D Converter with 8-Channel Multiplexer IC DIP-28 Package
The ADC0808 is an 8-bit Analog-to-Digital Converter (ADC) integrated with an 8-channel multiplexer, housed in a DIP-28 package. This IC is designed for applications requiring efficient analog signal acquisition from multiple input sources, making it ideal for embedded systems, data acquisition systems, and sensor-based applications. The 8-bit resolution of the ADC0808 enables it to convert analog input signals into digital outputs with 256 discrete levels. The integrated 8-channel multiplexer allows the IC to interface with up to eight analog input sources, selectable via three address lines. This feature is particularly useful in systems where multiple sensors or input signals need to be processed sequentially. The ADC0808 operates over a wide power supply range of 4.5V to 6V and is compatible with standard TTL and CMOS logic levels. It features a successive approximation register (SAR) architecture for efficient and accurate conversions with typical conversion times of 100 µs at 640 kHz clock frequency.
Features:-
- Low Power Consumption
- Easy Interface to All Microprocessors
- Outputs meet TTL Voltage Level Specifications
