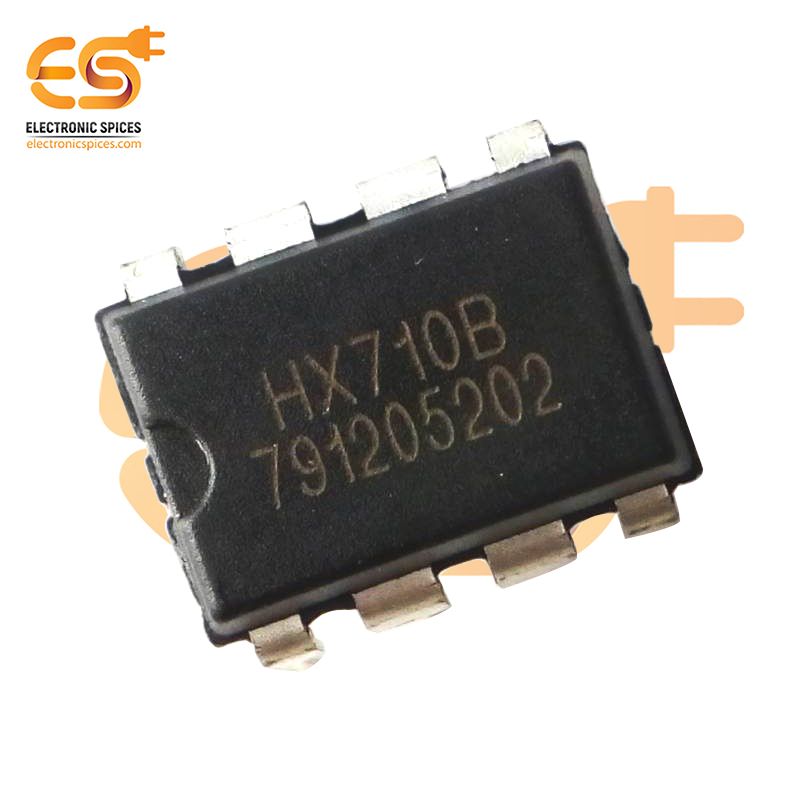

HX710B Weighing Scale 24-Bit Analog to Digital Converter (ADC) IC (DIP-8 Package)
Specification:-
- 8 pin SOP-8 or DIP-8 package
- Simultaneous 50 and 60Hz supply rejection
- Current consumption: normal operation < 1.2mA, power down < 1uA
- Operation supply voltage range: 2.6 ~ 5.5V
- Operation temperature range: -40 ~ +85℃
SKU: PC9102A
HX710B Weighing Scale 24-Bit Analog to Digital Converter (ADC) IC (DIP-8 Package)
The HX710B is a 24-bit Analog-to-Digital Converter (ADC) specifically designed for high-precision weighing scale and sensor applications. Housed in a DIP-8 package, this IC integrates advanced features for accurate and reliable data conversion, making it a popular choice for electronic scales, load cell interfaces, and pressure sensors. With its 24-bit resolution, the HX710B offers exceptional precision, enabling accurate measurement of small signal changes from sensors like strain gauges. The IC supports differential input channels, ensuring effective noise rejection and signal integrity, which is essential in applications prone to environmental interference. Its built-in low-noise programmable gain amplifier (PGA) further enhances signal quality by amplifying low-level sensor signals. The HX710B operates with a low-power consumption profile, making it ideal for battery-powered devices. It supports a wide supply voltage range of 2.6V to 5.5V, ensuring compatibility with various system designs. The IC uses a simple two-wire serial interface for communication, allowing easy integration with microcontrollers and embedded systems.
Features:-
- Low Power Consumption
- On-chip power-on-reset
- Low power CMOS technology
- On-chip temperature measurement
