Specification:-
- Total supply current = 1mA (Iset = 10µA)
- Low supply current (250µa/amplifier)
- Gain-bandwidth product : 1mhz
- Large dc voltage gain : 120db
- Low noise voltage : 28nv/vhz
- Wide power supply range : ±1.5v to ±22v
SKU: VD8543A

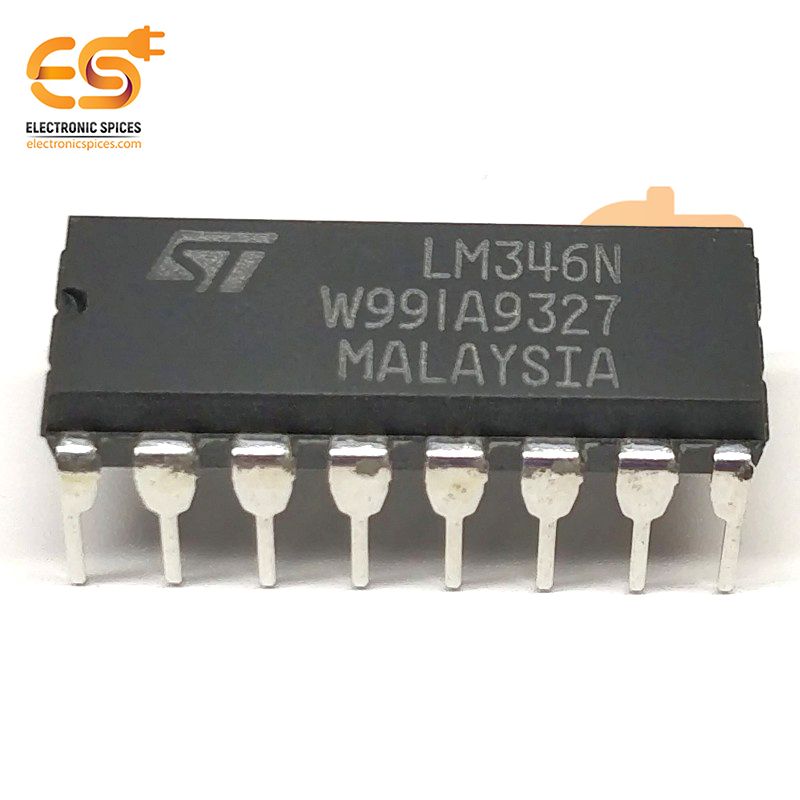

LM346N Programmable Quad Bipolar Op-Amplifier IC (DIP-16 Package)
The LM346N is a programmable quad bipolar operational amplifier IC, packaged in a DIP-16 format. It features four independent op-amps within a single IC, making it ideal for applications requiring multiple amplifiers in a single device while saving space. What sets the LM346N apart is its programmability, which allows users to set the gain of each amplifier using external resistors, offering flexibility for a variety of signal processing needs. The LM346N is designed to operate with a wide supply voltage range of ±3V to ±18V, providing versatility for different applications. It is known for its high performance, with a typical open-loop gain of 100,000 and a gain-bandwidth product of 1 MHz, which ensures accurate amplification in both low and high-speed circuits. The IC also features a low input bias current and low input offset voltage, making it suitable for high-precision applications where signal integrity is critical. With its high output drive capability, the LM346N can drive loads directly, making it ideal for use in voltage followers, active filters, and instrumentation amplifiers. The IC's low power consumption, combined with its programmability, makes it suitable for portable or battery-powered designs. The DIP-16 package enables easy integration into both traditional through-hole PCBs and prototyping setups.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Battery powered operation
- Overload protection forinputs and outputs
- Classe ab output stage. No crossover distortion
