MCP3201 12-Bit A/D Converter (ADC) with SPI Interface IC (DIP-8 Package)
Specification:-
- Single supply operation: 2.7V – 5.5V
- 100ksps max. sampling rate at VDD = 5V
- 50ksps max. sampling rate at VDD = 2.7V
- All Inputs and Outputs: VSS – 0.6V to VDD + 0.6V
- Storage Temperature: -65°C to +150°C
- Ambient temperature with power applied: -55°C to +125°C
- Soldering temperature of leads (10 seconds): +300°C
- ESD Protection On All Pins (HBM): ≥ 4 Kv
SKU: DE9102A

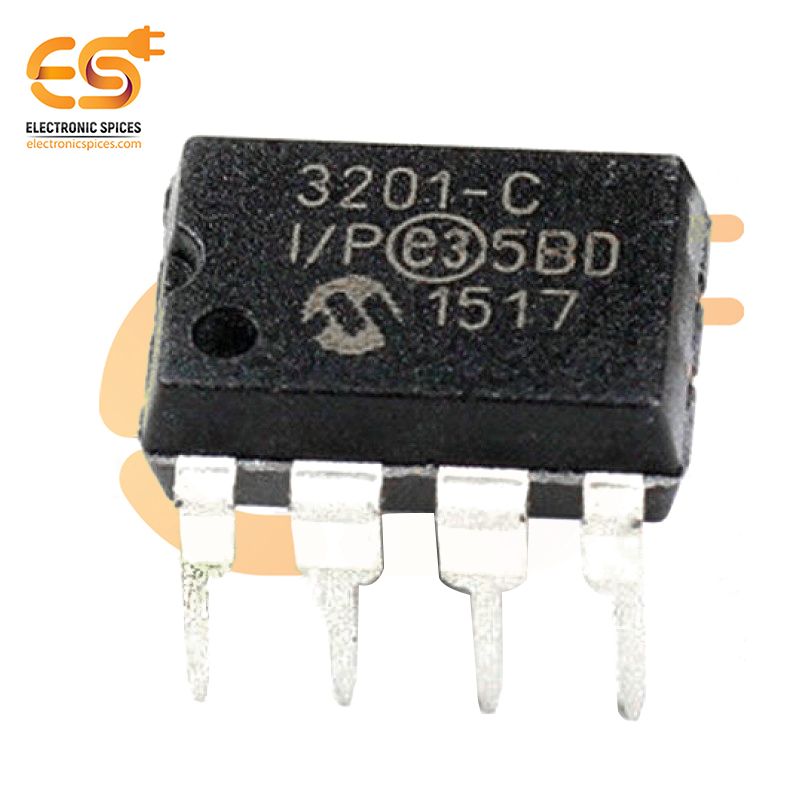

MCP3201 12-Bit A/D Converter (ADC) with SPI Interface IC (DIP-8 Package)
The MCP3201 is a 12-bit Analog-to-Digital Converter (ADC) featuring an SPI (Serial Peripheral Interface) communication protocol, housed in a compact DIP-8 package. This high-performance ADC is designed for applications requiring precise and efficient analog-to-digital conversion, making it ideal for sensor interfacing, data acquisition, and embedded systems. The MCP3201 provides 12-bit resolution, offering 4096 discrete digital levels, which ensures excellent accuracy for capturing and processing analog signals. It has a single differential input channel, allowing it to measure the voltage difference between two points, which is particularly useful for noise rejection and signal integrity in sensitive applications. Operating over a wide supply voltage range of 2.7V to 5.5V, the MCP3201 is compatible with low-power systems and standard logic levels. The ADC has a sampling rate of up to 100 ksps (kilo-samples per second), making it suitable for real-time data processing applications. Its low power consumption and compact design are optimized for portable and energy-efficient devices.
Features:-
- Low Power Consumption
- Easy Interface to Most Microprocessors
- Low power CMOS technology
