DRIVER IC
Showing 1–12 of 64 results
-
![MC34151 High Speed Dual MOSFET Driver IC (DIP-8 Package)]()
MC34151 High Speed Dual MOSFET Driver IC (DIP-8 Package)
Rs. 169.00Specification:-
- Power Supply Voltage: 20 V
- Logic Input: −0.3 to VCC V
- Gate Drive Output-Source Current: 1.5 A
- Maximum Power Dissipation = 50°C: 0.56 W
- Operating Junction Temperature: 150 °C
- Operating Ambient Temperature: 0 to +70 °C
- Storage Temperature Range: -65 to +150 °C
- Two Independent Channels with 1.5 A Totem Pole Output
-
![TC4427 Power MOSFET Driver SMD IC]()
TC4427 Power MOSFET Driver SMD IC
Rs. 139.00Specification:-
- High Peak Output Current: 1.5A
- Input Withstands Negative Inputs Up to 5V
- Input Supply Voltage Operating Range: – 4.5V to 18V
- Short Delay Times: 40 ns (typical)
- High Capacitive Load Drive Capability: 1000 pF in 25 ns (typical)
-
![TD62783 8 Channel High-Voltage Source Driver SMD IC]()
TD62783 8 Channel High-Voltage Source Driver SMD IC
Rs. 359.00Specification:-
- High output voltage: VCC: 50 V (min)
- Output current (single output): IOUT = −500 mA (min)
- Output clamp diodes
- Single supply voltage
- Input compatible with various types of logic
-
![IR2104 Half Bridge Driver SMD IC]()
IR2104 Half Bridge Driver SMD IC
Rs. 149.00Specification:-
- 3.3V, 5V and 15V input logic compatible
- Gate drive supply range from 10 to 20V
- High side output in phase with input
- Shut down input turns off both channels
- Undervoltage lockout
-
![A4988 Stepper Motor Driver SMD IC]()
A4988 Stepper Motor Driver SMD IC
Rs. 379.00Specification:-
- 3.3 and 5 V compatible logic supply
- Thermal shutdown circuitry
- Short-to-ground protection
- Shorted load protection
- Five selectable step modes: full, 1/2, 1/4, 1/8, and 1/16
-
![IR2153 Self Oscillating Half Bridge Driver IC (DIP-8 Package)]()
IR2153 Self Oscillating Half Bridge Driver IC (DIP-8 Package)
Rs. 99.00Specification:-
- High side floating supply voltage: -0.3 to 625 V
- High side floating supply offset voltage: VB -25 to VB +0.3 V
- High side floating output voltage: -0.3 to VB +0.3 V
- Low side output voltage: -0.3 to VCC+0.3 V
- RT pin voltage: -0.3 to VCC+0.3 V
- Supply current (note 1): 25 mA
-
![L298N Dual Full Bridge Driver IC Multiwatt-15 Package]()

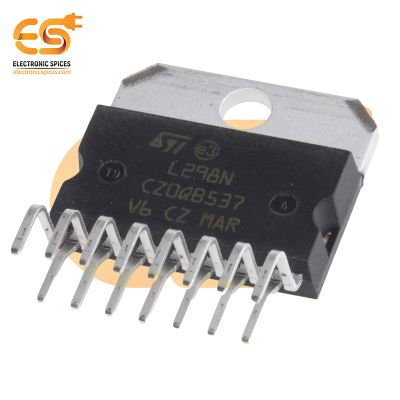

L298N Dual Full Bridge Driver IC Multiwatt-15 Package
Rs. 189.00Specification:-
- Supply voltage: 50 V
- Logic supply voltage: 7 V
- Ven-Input and Enable Voltage: -0.3 to 7 V
- Vsens-Sensing Voltage: -1 to 2.3
- Ptot-Total Power Dissipation: 25 W
- Junction temperature range: -25 to 130 °C
- Storage temperature range: -40 to 150 °C
-
![TC4420 6A High-Speed MOSFET Driver IC]()
TC4420 6A High-Speed MOSFET Driver IC
Rs. 169.00Specification:-
- Supply Voltage: +20V
- Input Voltage: – 5V to VDD + 0.3V
- Input Current (VIN > VDD): 50 mA
- High Capacitive Load Drive Capability: 10,000 pF
- Wide Input Supply Voltage Operating Range: – 4.5V to 18V
- Package Power Dissipation 5-Pin TO-220 (With Heatsink): 12.5W
- Output Voltage Swing to Within 25 mV of Ground or VDD
- Thermal Impedances (To Case) 5-Pin TO-220: 10°C/W
-
![IR2111 Half Bridge Driver IC (DIP-8 Package)]()
IR2111 Half Bridge Driver IC (DIP-8 Package)
Rs. 159.00Specification:-
- High side floating supply voltage: -0.3 to 625 V
- High side floating supply offset voltage: VB -25 to VB +0.3 V
- High side floating output voltage: -0.3 to VB +0.3 V
- Low side and logic fixed supply voltage: -0.3 to 25V
- Low side output voltage: -0.3 to VCC+0.3 V
- Logic input Voltage: -0.3 to VSS+0.3 V
-
![IR2110 High and Low Side Driver IC (DIP-14 Package)]()
IR2110 High and Low Side Driver IC (DIP-14 Package)
Rs. 149.00Specification:-
- High side floating supply voltage: -0.3 to 625 V
- High side floating supply offset voltage: VB -25 to VB +0.3 V
- High side floating output voltage: -0.3 to VB +0.3 V
- Low side and logic fixed supply voltage: -0.3 to 25V
- Low side output voltage: -0.3 to VCC+0.3 V
- Logic supply Voltage: -0.3 to VSS+25 V
-
![MAX7221 8-Digit LED Display SMD Driver IC]()
MAX7221 8-Digit LED Display SMD Driver IC
Rs. 399.00Specification:-
- 10MHz Serial Interface
- Individual LED Segment Control
- Decode/No-Decode Digit Selection
- 150µA Low-Power Shutdown (Data Retained)
- Digital and Analog Brightness Control
-
![MAX7219 8-Digit LED Display Driver SMD IC]()
MAX7219 8-Digit LED Display Driver SMD IC
Rs. 409.00Specification:-
- 24-Pin SO Package
- 10MHz Serial Interface
- 150µA Low-Power Shutdown (Data Retained)
- Decode/No-Decode Digit Selection
- Individual LED Segment Control
