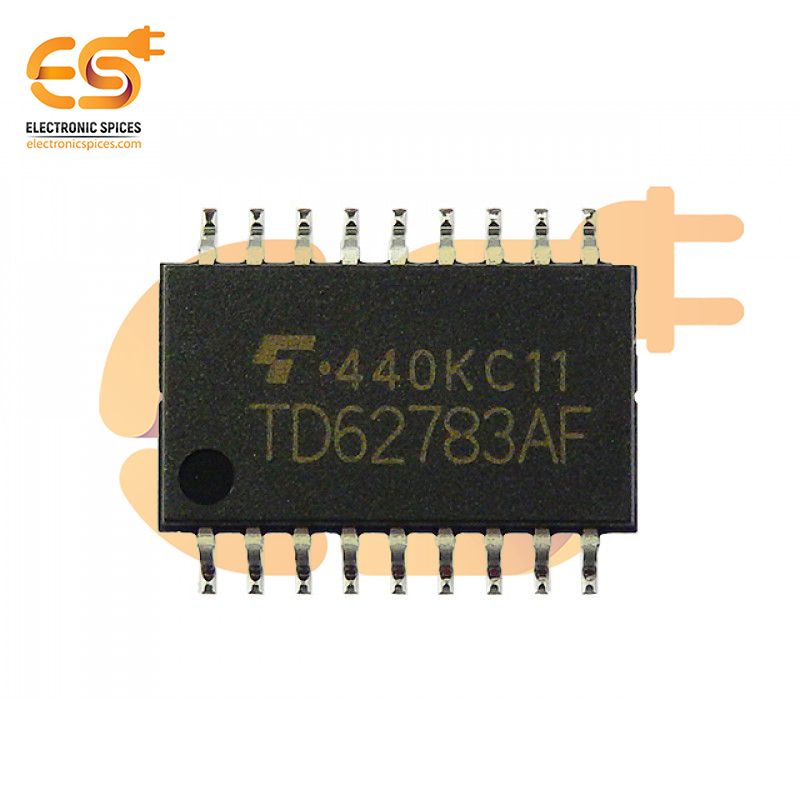

TD62783 8 Channel High-Voltage Source Driver SMD IC
Specification:-
- High output voltage: VCC: 50 V (min)
- Output current (single output): IOUT = −500 mA (min)
- Output clamp diodes
- Single supply voltage
- Input compatible with various types of logic
SKU: TM8501A
TD62783 8 Channel High-Voltage Source Driver SMD IC
The TD62783 is an 8-channel high-voltage source driver SMD IC designed for driving various loads such as LEDs, relays, and motors. With its ability to source output currents up to 50mA per channel, the TD62783 efficiently controls high-power components while ensuring stable performance across all outputs. This IC can operate with high-voltage outputs, typically up to 50V, making it suitable for applications where reliable power management is essential. Its source output configuration allows it to supply current directly to connected devices, which is particularly beneficial in systems requiring multiple output controls, such as lighting arrays or complex motor setups. The TD62783 is designed with built-in protection features, including over-current and thermal protection, enhancing the safety and longevity of both the IC and the devices it drives. Housed in a surface-mount package (SMD), the TD62783 is compact and well-suited for high-density circuit boards, facilitating integration into modern electronic systems with limited space.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Compact SMD package
- High-Voltage Capability
- 8-Channel Driver
