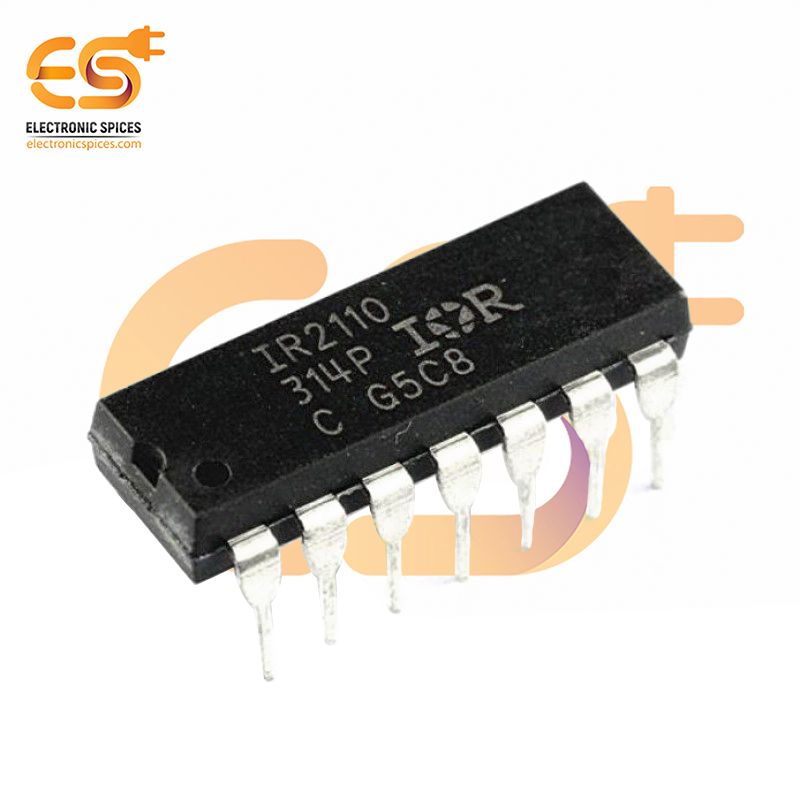

IR2110 High and Low Side Driver IC (DIP-14 Package)
Specification:-
- High side floating supply voltage: -0.3 to 625 V
- High side floating supply offset voltage: VB -25 to VB +0.3 V
- High side floating output voltage: -0.3 to VB +0.3 V
- Low side and logic fixed supply voltage: -0.3 to 25V
- Low side output voltage: -0.3 to VCC+0.3 V
- Logic supply Voltage: -0.3 to VSS+25 V
SKU: PU8524A
IR2110 High and Low Side Driver IC (DIP-14 Package)
The IR2110is a half-bridge driver IC designed to drive both high-side and low-side power MOSFETs and IGBTs in half-bridge configurations. Available in a DIP-8 package, this IC is well-suited for applications requiring compact, efficient, and reliable gate drive solutions for high-voltage switching. The IR2110utilizes floating channel technology, allowing the high-side channel to operate at voltages up to 500V. With its robust gate drive capabilities, it ensures fast and efficient switching of power transistors, reducing energy losses and improving the overall system performance. The IC also incorporates safety features, such as under-voltage lockout (UVLO), which prevents damage to the system under low supply voltage conditions.
Features:-
- Low power consumption
- Compact and Easy Integration
- High-Side/Low-Side Driver
- High Voltage Capability
- Under Voltage Lockout (UVLO)
