L6205 DMOS Dual Full Bridge Driver SMD IC

L6205 DMOS Dual Full Bridge Driver SMD IC

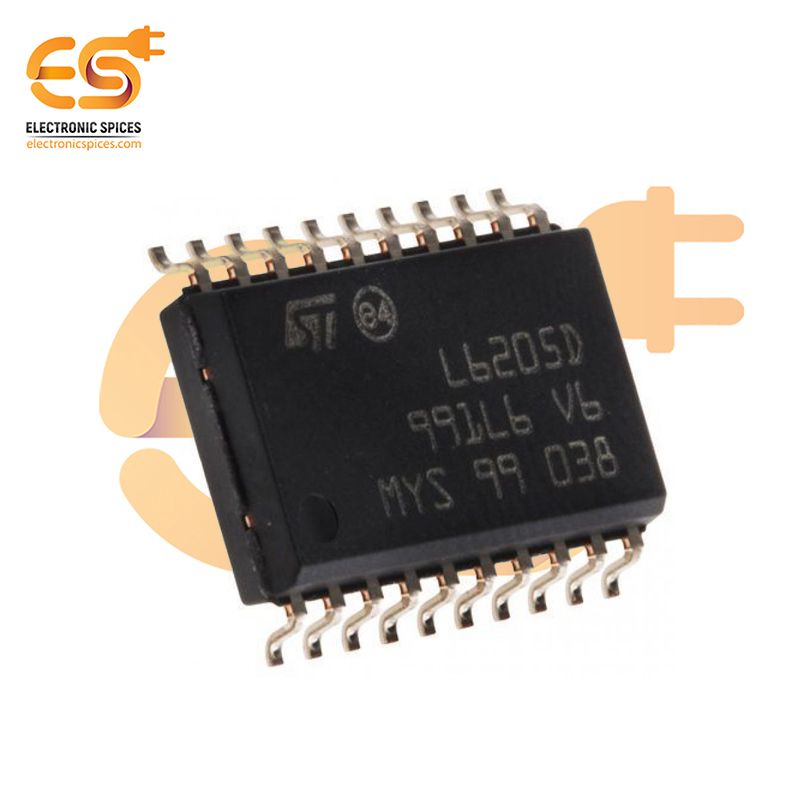

The L6205 is a DMOS dual full-bridge driver IC designed for driving DC motors, stepper motors, and other inductive loads in various electronic applications. Available in an SMD package, this integrated circuit offers high efficiency and is well-suited for driving power-hungry devices with ease. It operates from a single 4.5V to 36V power supply, making it flexible for different voltage configurations. The L6205 incorporates two H-Bridge circuits, enabling independent control of two motors or other inductive loads. Each bridge can supply a peak output current of up to 3A, with an operating voltage range that is ideal for medium-power motor control applications. The IC features internal protection circuitry, such as overcurrent protection, thermal shutdown, and integrated diodes for flyback protection, ensuring reliable and safe operation even under stressful conditions. One of the notable features of the L6205 is its DMOS technology, which provides low on-resistance and high efficiency, minimizing heat generation during operation. The PWM control allows for smooth motor speed control and accurate torque management, making it ideal for use in robotics, automotive, and consumer electronics applications.

Features:-

• Low power consumption
• Easy to set up and initialize
• Compact and Easy Integration
• Cross-conduction protection
• Thermal shutdown
• Under voltage lockout
• Integrated fast free wheeling diodes
