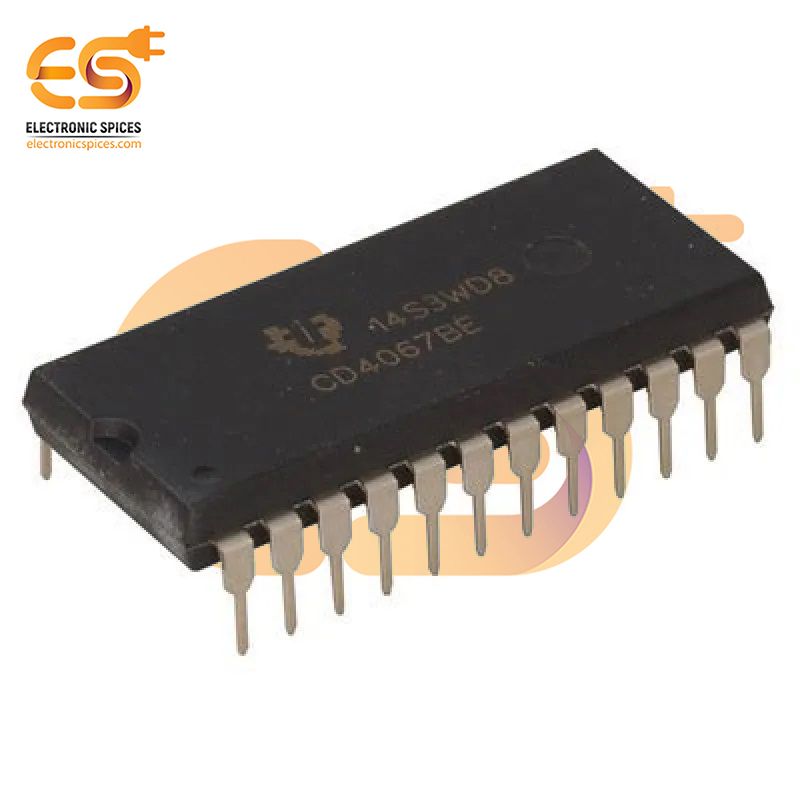

CD4067 16-Channel Analog Multiplexer/Demultiplexer IC (DIP-24 Package)
Specification:-
- Supply current: 0.04 uA
- 5-V, 10-V, and 15-V parametric ratings
- 100% tested for quiescent current at 20 V
- Maximum input current of 1 µA at 18 V
- Temperature range; 100nA at 18 V and 25°C
- Low ON resistance: 125 (typ.) over 15 Vp-p signal-input range for VDD – VSS = 15 V
- High OFF resistance: channel leakage of ±10 pA (typ.) @ VDD – VSS = 10 V
- Matched switch characteristics: RON = 5 (typ.) for VDD – VSS = 15 V
SKU: OQ8543A
CD4067 16-Channel Analog Multiplexer/Demultiplexer IC (DIP-24 Package)
The CD4067 is a 16-channel analog multiplexer/demultiplexer IC housed in a DIP-24 package, designed for switching between multiple analog signals. It features 16 independent channels (Y0–Y15) that can be connected to a common input or output (Z) through the control logic. This IC allows one of the 16 input channels to be routed to the output (multiplexing) or one of the 16 output channels to be connected to a common input (demultiplexing), depending on the control signals applied. The CD4067 is widely used in applications that require the selection and routing of multiple analog signals, such as in signal processing, data acquisition systems, communication equipment, and test equipment. It is particularly useful in systems that need to reduce the number of pins or connections required for handling multiple signals, as it allows for the management of several analog inputs or outputs using just a few control lines. The IC operates over a supply voltage range of 3V to 18V, making it compatible with various digital systems and allowing flexibility in a wide range of applications. Its CMOS technology ensures low power consumption, high noise immunity, and stable operation even in noisy or power-sensitive environments.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
- Binary address decoding on chip
