Showing 1–12 of 949 results
-
![TD62083 8-Channel Darlington Sink Driver SMD IC]()

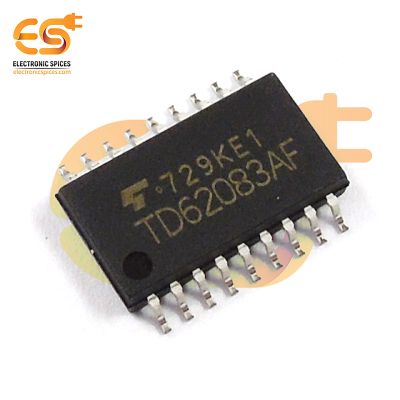

TD62083 8-Channel Darlington Sink Driver SMD IC
Rs. 229.00Specification:-
- Output current (single output): 500 mA (max)
- High sustaining voltage output: 50 V (min)
- Output clamp diodes
- Inputs compatible with various types of logic.
- Package type-AFG: SOP-18 pin
-
![24LC256 256K bit Serial I2C Bus EEPROM IC (DIP-8 Package)]()
24LC256 256K bit Serial I2C Bus EEPROM IC (DIP-8 Package)
Rs. 69.00Specification:-
- Single Supply with Operation Down to 2.5V
- All inputs and outputs w.r.t. VSS: -0.6V to VCC +1.0V
- Storage temperature: -65°C to +150°C
- Ambient temperature with power applied: -40°C to +125°C
- ESD protection on all pins: ≥ 4 kV°C
- 100 kHz, 400 kHz and 1 MHz Compatibility
-
![74LS73 Dual JK Flip-Flop with Clear IC DIP-14 Package]()

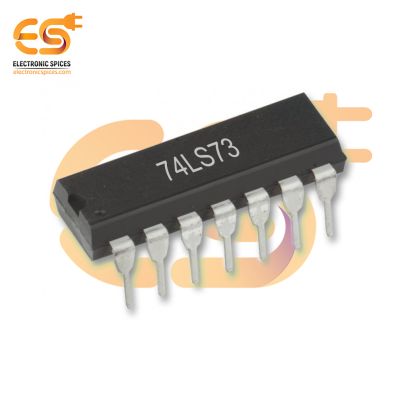

74LS73 Dual JK Flip-Flop with Clear IC DIP-14 Package
Rs. 59.00Specification:-
- Number of pins: 14
- Supply Voltage (VCC): 7 V
- Input Voltage (VI): 7 V
- Operating free-air temperature range: 0°C to +70°C
- Storage temperature range: –65°C to +150°C
-
![74LS05 Hex Inverters with Open-Collector SMD IC]()
74LS05 Hex Inverters with Open-Collector SMD IC
Rs. 39.00Specification:-
- Mounting: SMD
- Supply Voltage: 4.75 to + 5.25V
- Output Current: 8mA
- Operating Temperature: 0°C to 70°C
- Six Independent INVERT Gates
- Standard TTL Switching Voltages
-
![CY74FCT2244ATPC 4-Bit Non-Inverting IC 20-PDIP]()
CY74FCT2244ATPC 4-Bit Non-Inverting IC 20-PDIP
Rs. 500.00Specification:-
- Package: TSSOP-48 (0.240", 6.10mm)
- No. of pins: 20 pin
- Output Type: 3-State
- Supply Voltage-Max (Vsup): 5.25 V
- Supply Voltage-Min (Vsup): 4.75 V
- Supply Voltage-Nom (Vsup): 5 V
- Logic Type: Transceiver, Non-Inverting
- Number of Bits per Element: 4
- Operating Temperature: -40°C to 85°C
-
![LF356 JFET Input Op-Amplifier IC (DIP-8 Package)]()

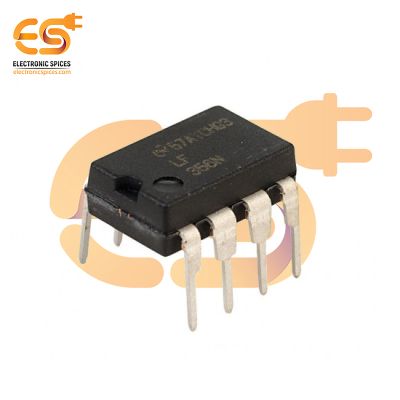

LF356 JFET Input Op-Amplifier IC (DIP-8 Package)
Rs. 59.00Specification:-
- Supply Voltage: ±18 V
- Input voltage: ±16 V
- Differential input voltage: ±30 V
- Low Input Bias Current: 30 pA
- Low Input Offset Current: 3 pA
- High Input Impedance: 1012 Ω
- Operating temperature: -40 °C to 125 °C
- Storage temperature: -65 °C to 150 °C
-
![TC7660 Charge Pump DC to DC Voltage Converter IC]()

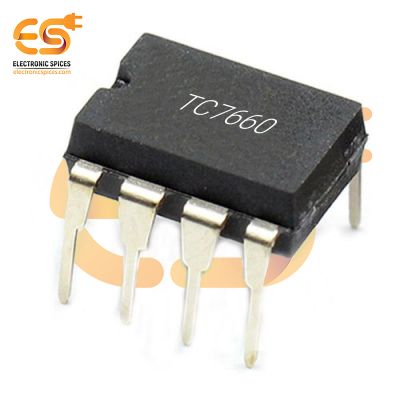

TC7660 Charge Pump DC to DC Voltage Converter IC
Rs. 59.00Specification:-
- Supply Voltage: +10.5V
- LV and OSC Inputs Voltage: 730 mW
- Current into LV: 20 µA for V+ > 3.5V
- Output Short Duration: Continuous
- Package Power Dissipation: 730 mW
- Operating Temperature Range: 0°C to +70°C
- Storage Temperature Range: -65°C to +160°C
- Maximum Junction Temperature: 150°C
-
![AT93C56-10SC EEPROM Memory IC 8-SOIC]()
AT93C56-10SC EEPROM Memory IC 8-SOIC
Rs. 500.00Specification :-
- Package: SOIC-8 (0.154", 3.90mm)
- No. of Pins: 8-Pins
- Mounting Style: SMD/SMT
- Memory Size: 2 Kbit (256 x 8 or 128 x 16)
- Maximum Clock Frequency: 2 MHz
- Supply Voltage Min: 4.5 V
- Supply Voltage Max: 5.5 V
- Operating Temperature: 0°C to 70°C
-
![74LS05 Hex Inverter Collector IC DIP-14 Package]()
74LS05 Hex Inverter Collector IC DIP-14 Package
Rs. 29.00Specification:-
- Number of pins: 14
- Supply Voltage (min): 4.75V
- Supply Voltage (max): 5.25V
- Low Level Input Voltage: 0.8V
- High Level Output Voltage: 5.5V
- Low Level Output Current: 8mA
- Operating Temperature: 0°C to 70°C
-
![CD4022 Divide by 8 Counter/Divider IC (DIP-16 Package)]()

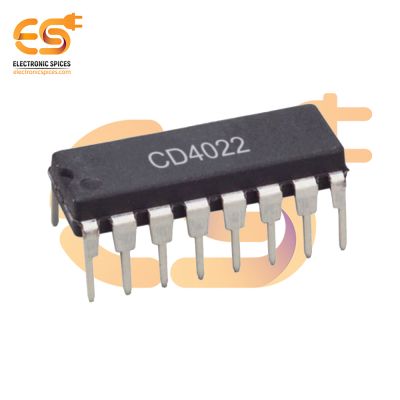

CD4022 Divide by 8 Counter/Divider IC (DIP-16 Package)
Rs. 29.00Specification:-
- DC Supply Voltage (VDD): -0.5 VDC to + 8 VDC
- Input Voltage (VIN): -0.5 VDC to VDD +0.5 VDC
- Storage Temperature (TS): -65°C to +150°C
- Power Dissipation (PD) Dual-In-Line: 700 mW
- Lead Temperature (TL): 260°C
-
![AM26LV32 Low-Voltage High-Speed Quadruple Differential Line Receiver SMD IC]()

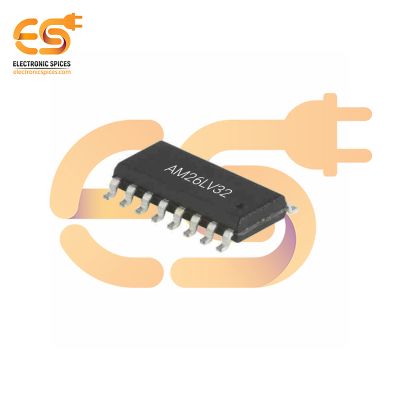

AM26LV32 Low-Voltage High-Speed Quadruple Differential Line Receiver SMD IC
Rs. 169.00Specification:-
- Mounting: SMD
- Number of: 16 Pins
- Input Hysteresis: 50 mV Typical
- Operates From Single 3.3-V Supply
- Ultra-Low Power Dissipation: 27 mW Typical
- Switching Rates Up to 32 MHz
- 235 mW With Four Receivers at 32 MHz
-
![LM346N Programmable Quad Bipolar Op-Amplifier IC (DIP-16 Package)]()

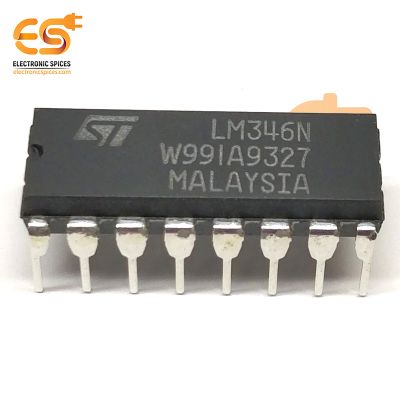

LM346N Programmable Quad Bipolar Op-Amplifier IC (DIP-16 Package)
Rs. 99.00Specification:-
- Total supply current = 1mA (Iset = 10µA)
- Low supply current (250µa/amplifier)
- Gain-bandwidth product : 1mhz
- Large dc voltage gain : 120db
- Low noise voltage : 28nv/vhz
- Wide power supply range : ±1.5v to ±22v
