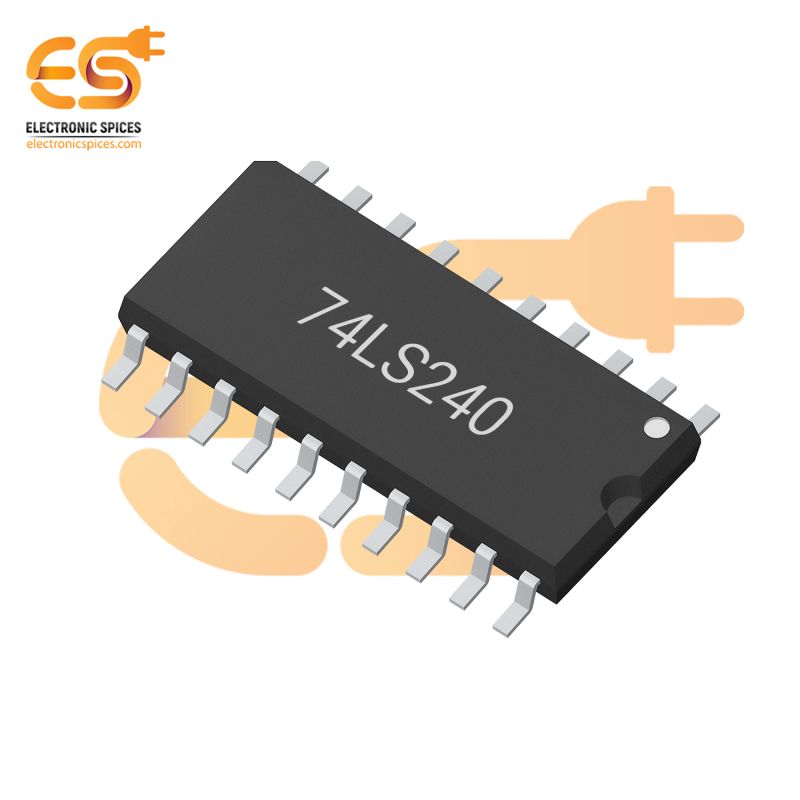

74LS240 Octal Buffers & Line Drivers SMD IC

74LS240 Octal Buffers & Line Drivers SMD IC

The 74LS240 is an Octal Buffer/Line Driver IC in SMD (Surface-Mount Device) form, designed to drive a wide range of digital logic circuits. It is part of the LS (Low Power Schottky) logic family, which offers fast switching speeds, low power consumption, and high noise immunity. This IC is typically used to drive logic-level signals across bus systems, ensuring signal integrity and proper data transmission. The 74LS240 IC features eight buffer/line drivers, each with a three-state output, which makes it ideal for bus-oriented applications. The IC's inputs are non-inverting, and it offers the capability to control the state of each output using the Output Enable (OE) control pins. When OE is active (low), the corresponding outputs are enabled, and when OE is inactive (high), the outputs are in a high-impedance state, effectively disconnecting them from the circuit and allowing other devices to use the bus without interference. The 74LS240 is designed to drive high-speed logic systems, including microprocessors, memory circuits, and peripheral interfaces. It is commonly used in systems that require buffering or signal amplification, ensuring stable data transfer in parallel communication lines and maintaining proper voltage levels across all connected devices.

Features:-

• High-Speed Operation
• Wide Operating Voltage Range
• Low Power Consumption
• Compact SMD Package
• Octal Buffer/Line Driver
