74HC02 Quad 2-Input NOR Gate SMD IC

74HC02 Quad 2-Input NOR Gate SMD IC

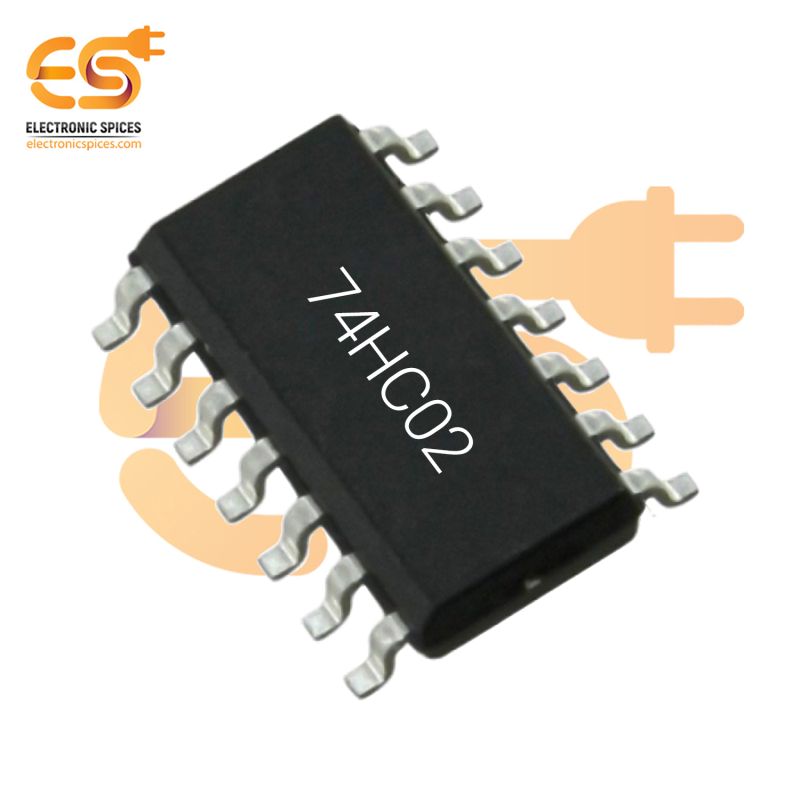

The 74HC02 is a quad 2-input NOR gate integrated circuit with four independent NOR gates that comes in an SMD (Surface Mount Device) package. The logic NOR operation, which is carried out by each gate in the IC, only produces a high (logic 1) when both inputs are low (logic 0). The output will be low (logic 0) if any of the inputs are high (logic 1). This integrated circuit is compatible with a wide range of logic levels and system designs because it operates across a wide voltage range of 2V to 6V. The 74HC02, which was constructed with high-speed CMOS technology, provides an average propagation delay of about 8 ns at 5V, allowing for effective operation in high-speed digital circuits. The IC is appropriate for battery-operated and energy-efficient systems due to its low power consumption characteristics. In digital logic systems, the 74HC02 is frequently used for tasks like signal generation, control logic circuits, and gating applications that call for a NOR operation. Its SMD packaging makes effective use of PCB space by facilitating integration into small, contemporary electronic designs.

Features:-

• High-Speed Operation
• Wide Operating Voltage Range
• Low Power Consumption
• Compact SMD Package
