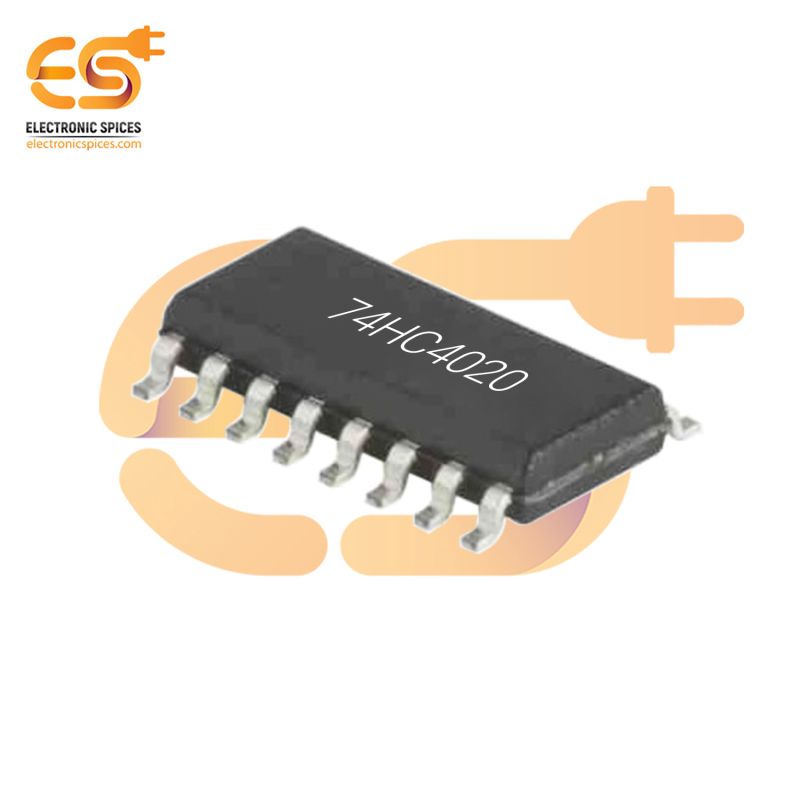

74HC4020 14-Stage Binary Ripple Counter SMD IC
Specification:-
- Mounting: SMD
- Input levels: CMOS level
- Supply Voltage range: 2 to 6V
- Supply Voltage: − 0.5 to + 7.0V
- Power Dissipation: 500 mW
- Operating Temperature: -40°C to 125°C
SKU: NU8501A
74HC4020 14-Stage Binary Ripple Counter SMD IC
The 74HC4020 operates as a 14-stage binary counter capable of counting from 0 to 16,383 in a binary format. Each stage of the counter is a flip-flop, and the counter increments by one with each clock pulse. The IC provides ripple counting, where the output of one flip-flop serves as the clock input to the next flip-flop, creating a ripple effect across the stages. The IC features TTL-compatible inputs and CMOS output levels, providing good noise immunity and low power consumption. The counter has a single clock input (CLK) and can be reset using the reset input (MR) to clear the count to zero. The IC can be used in systems requiring long count cycles, such as frequency dividers or for time-keeping applications. It is especially suitable for use in systems that require a large binary counter with minimal external components.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Low Power Consumption
- Compact SMD Package
- 14-Stage Binary Ripple Counter
- TTL-Compatible Inputs
