Specification:-
- Mounting: SMD
- Power Dissipation: 500 mW
- Operating Voltage Range: 2 V – 6 V
- Supply Voltage: − 0.5 to + 7.0V
- Supply Current: ± 50 mA
- Operating Temperature: 65°C to 150°C
SKU: SG8501A

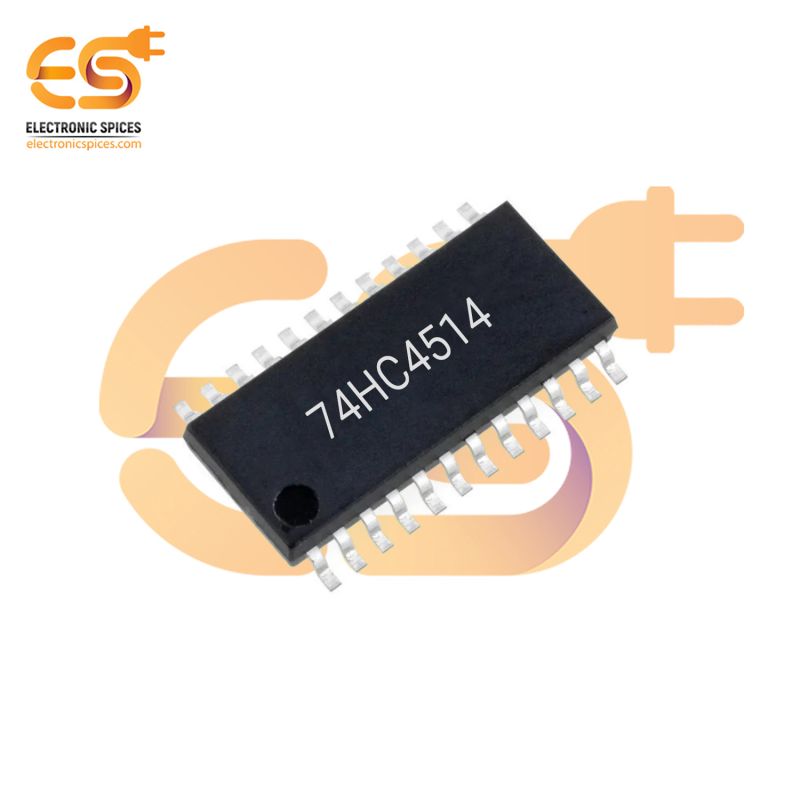

74HC4514 4-to-16 line Decoder/Demultiplexer with input latches SMD IC
The 74HC4514 is a 4-to-16 line decoder/demultiplexer with input latches, designed for high-speed digital applications. This SMD IC offers a solution for converting 4-bit binary inputs into one of 16 outputs, making it ideal for systems requiring efficient data routing or address decoding. The IC features input latches that enable the device to hold its state until a control signal (like latch enable) is activated. This ensures that the output remains stable, even if the input changes, which is particularly useful in applications where timing is crucial and the input data needs to be held steady for processing. The 74HC4514 is typically used in applications such as memory addressing, peripheral selection, or data demultiplexing, where multiple outputs need to be activated based on a 4-bit input. It is particularly useful in systems that require efficient control of multiple lines with minimal logic complexity. With its high-speed CMOS technology, the 74HC4514 ensures low power consumption and high noise immunity, making it suitable for a wide range of digital applications. The IC operates with a voltage range of 2V to 6V, allowing compatibility with various logic families and voltage levels in modern electronics.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Low Power Consumption
- Compact SMD Package
