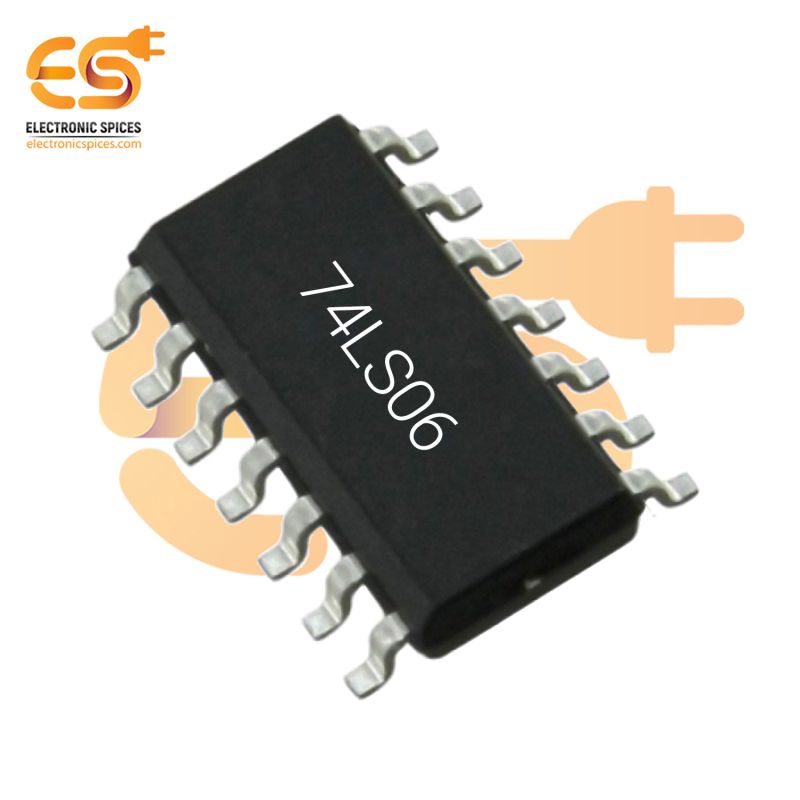

74LS06 Hex Inverter - Buffer SMD IC

74LS06 Hex Inverter - Buffer SMD IC

The 74LS06 Hex Inverter - Buffer SMD IC is a high-speed TTL (Transistor-Transistor Logic) integrated circuit designed to invert digital signals while providing buffering capabilities. This IC contains six independent inverters with open-collector outputs. It can pull the output to a low state when activated but will not drive the output high, leaving it to be pulled high externally. This feature is particularly useful for interfacing with devices that require external pull-up resistors or for applications involving high-speed or high-voltage logic levels. The 74LS06 IC is part of the LS (Low Power Schottky) family, which combines high-speed operation with low power consumption. The device contains six inverters, each with a single input and single-output, which inverts the input signal to produce a complementary output. This makes the IC suitable for a wide variety of applications where signal inversion is required. The open-collector output feature of the 74LS06 enables wired-AND functionality when multiple inverters are connected in parallel, or it can be used in systems where multiple ICs drive a shared line, allowing greater flexibility in system design. The open-collector configuration is also suitable for level shifting or bus-driving applications.

Features:-

• High-Speed Operation
• Wide Operating Voltage Range
• Low Power Consumption
• Compact SMD Package
• Six independent inverters on a single chip
• Suitable for external pull-up configurations
