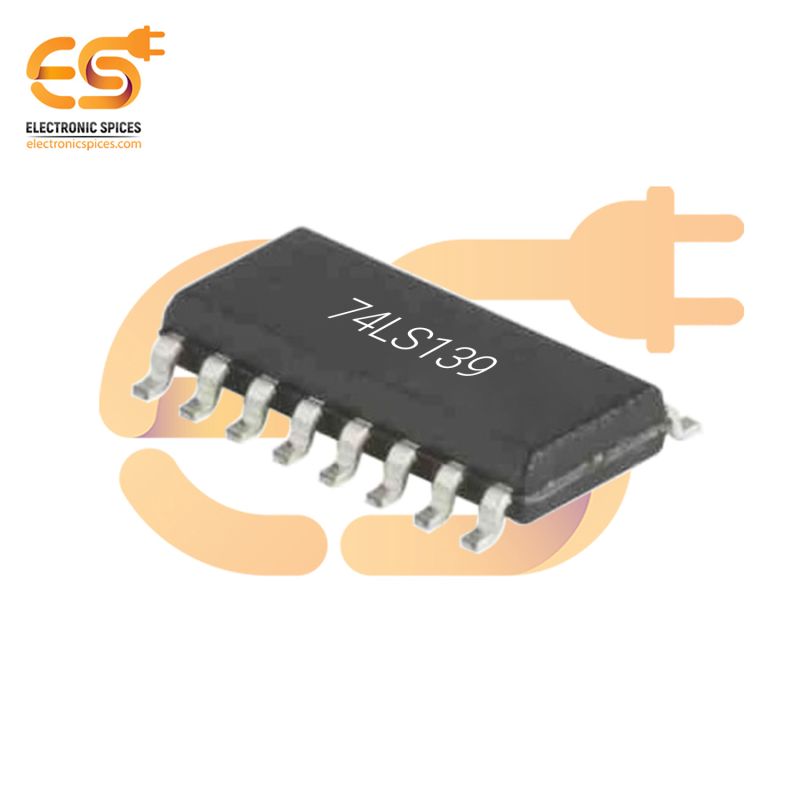

74LS139 High Speed Dual 1-of-4 Decoder/De-Multiplexer SMD IC

74LS139 High Speed Dual 1-of-4 Decoder/De-Multiplexer SMD IC

The 74LS139 High Speed Dual 1-of-4 Decoder/De-Multiplexer SMD IC is a versatile and reliable component widely used in digital systems for address decoding and data routing. This IC features two independent 1-of-4 decoders or demultiplexers within a single package. Each decoder has two address inputs, an enable input, and four active-low outputs, enabling it to decode two binary-coded inputs into one of four mutually exclusive outputs. The 74LS139 is known for its fast switching speeds and low power consumption, which makes it suitable for high-speed data processing and time-critical applications. Each of the two decoders can operate independently, providing flexibility in circuit design, allowing engineers to implement dual 1-of-4 decoding functions or use them together for more complex decoding needs. The surface-mount design (SMD) of the 74LS139 helps in reducing the footprint on a printed circuit board (PCB), which is essential for modern, space-constrained applications. The compact form factor allows for more streamlined and efficient PCB layouts, supporting the development of high-density electronic assemblies.

Features:-

• High-Speed Operation
• Wide Operating Voltage Range
• Low Power Consumption
• Compact SMD Package
