Specification:-
- Power Supply Voltage: 20 V
- Logic Input: −0.3 to VCC V
- Gate Drive Output-Source Current: 1.5 A
- Maximum Power Dissipation = 50°C: 0.56 W
- Operating Junction Temperature: 150 °C
- Operating Ambient Temperature: 0 to +70 °C
- Storage Temperature Range: -65 to +150 °C
SKU: SN8524A

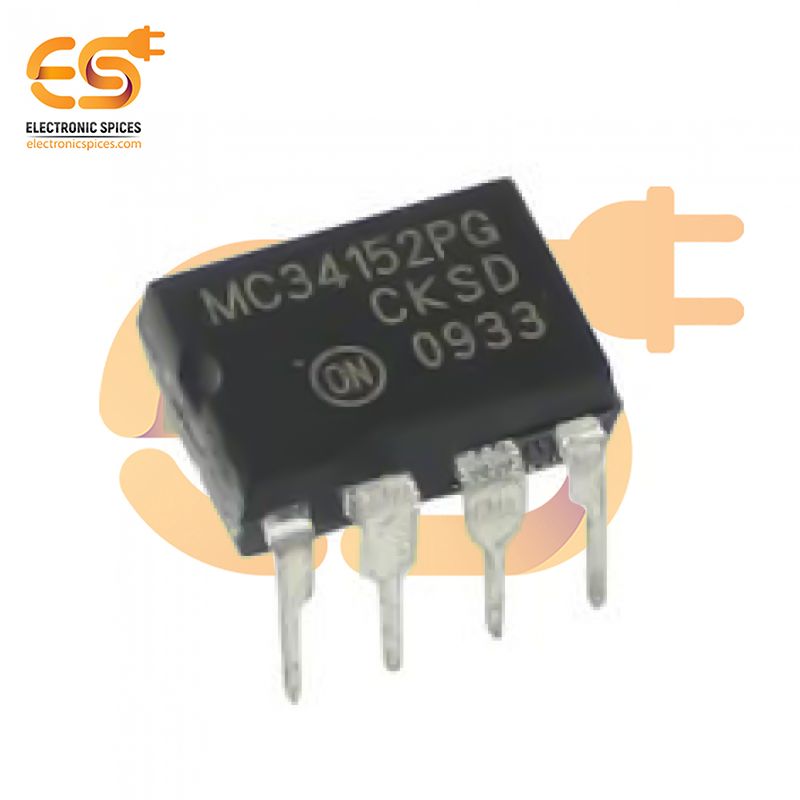

MC34152P MC34152 High Speed Dual MOSFET Driver IC (DIP-8 Package)
The MC34152P is a high-speed, dual-channel MOSFET driver IC housed in a DIP-8 package, designed to efficiently drive MOSFETs and insulated gate bipolar transistors (IGBTs) in high-performance power conversion systems. It is particularly suited for applications requiring fast switching speeds and high current-driving capabilities. Each channel of the MC34152P can independently drive capacitive loads with peak output currents up to 1.5A. The IC features low propagation delays and a fast rise/fall time, enabling efficient operation in high-frequency switching environments. It includes built-in protection features such as under-voltage lockout (UVLO) to ensure safe and reliable operation, even under varying input voltage conditions. With an input threshold compatible with both TTL and CMOS logic levels, the MC34152P easily integrates into a wide range of systems, from motor control circuits to power supplies and DC-DC converters. The device’s high speed and dual independent drivers make it ideal for complementary drive configurations in half-bridge or full-bridge topologies.
Features:-
- Low power consumption
- Compact and Easy Integration
- Dual high-speed MOSFET driver channels
- 1.5A peak output current per channel
- Low propagation delay and fast rise/fall time
- TTL and CMOS-compatible input threshold
