Specification:-
- High side floating supply voltage: -0.3 to 625 V
- High side floating supply offset voltage: VB -25 to VB +0.3 V
- High side floating output voltage: -0.3 to VB +0.3 V
- Low side and logic fixed supply voltage: -0.3 to 25V
- Low side output voltage: -0.3 to VCC+0.3 V
- Logic supply Voltage: -0.3 to VSS+0.3 V
SKU: PV8524A

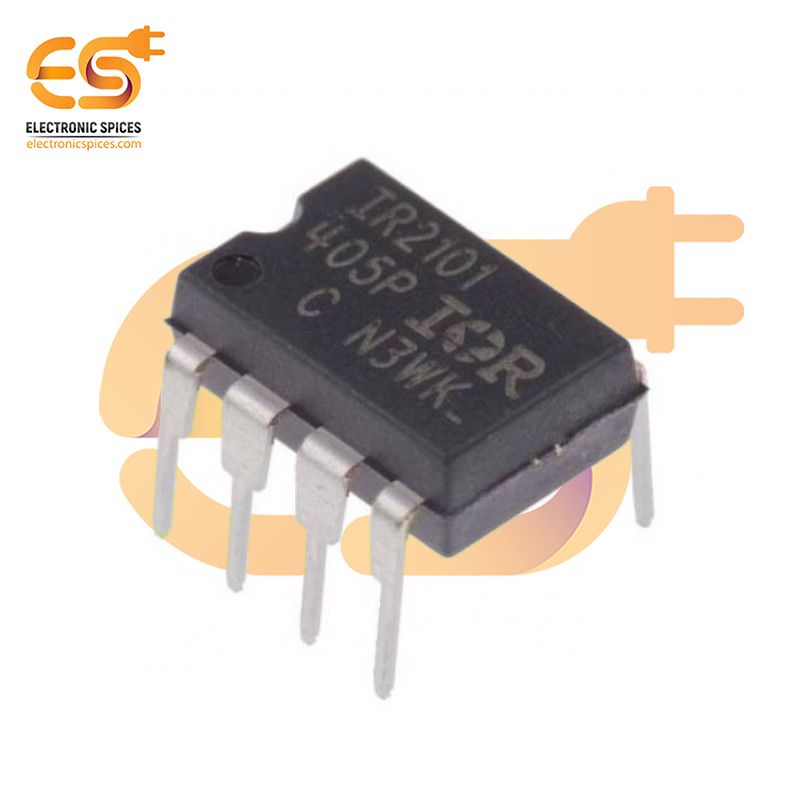

IR2101 High and Low Side Driver IC (DIP-8 Package)
The IR2101 is a versatile high and low-side driver IC designed to control N-channel power MOSFETs or IGBTs in half-bridge configurations. Packaged in a compact DIP-8 form, it offers a space-efficient solution for power electronics applications. The IC features a high-side floating driver that can operate at voltages up to 600V, making it suitable for high-voltage applications such as motor drives, inverters, and power supplies. The IR2101 provides independent input control for high-side and low-side drivers, enabling flexibility in circuit design. It integrates under-voltage lockout (UVLO) protection on both channels to prevent improper operation during low supply voltage conditions. The driver delivers high peak currents, ensuring fast switching of the power devices, which is critical for high-efficiency operation. Additionally, the IC has a logic input compatibility with standard TTL and CMOS levels, simplifying interfacing with microcontrollers and other control circuits.
Features:-
- Low power consumption
- Compact and Easy Integration
- High-Side/Low-Side Driver
- High Voltage Capability
