Specification:-
- High side floating supply voltage: -0.3 to 625 V
- High side floating supply offset voltage: VB -25 to VB +0.3 V
- High side floating output voltage: -0.3 to VB +0.3 V
- Low side and logic fixed supply voltage: -0.3 to 25V
- Low side output voltage: -0.3 to VCC+0.3 V
- Logic Supply Voltage: -0.3 to VSS+25 V
SKU: XL8524A

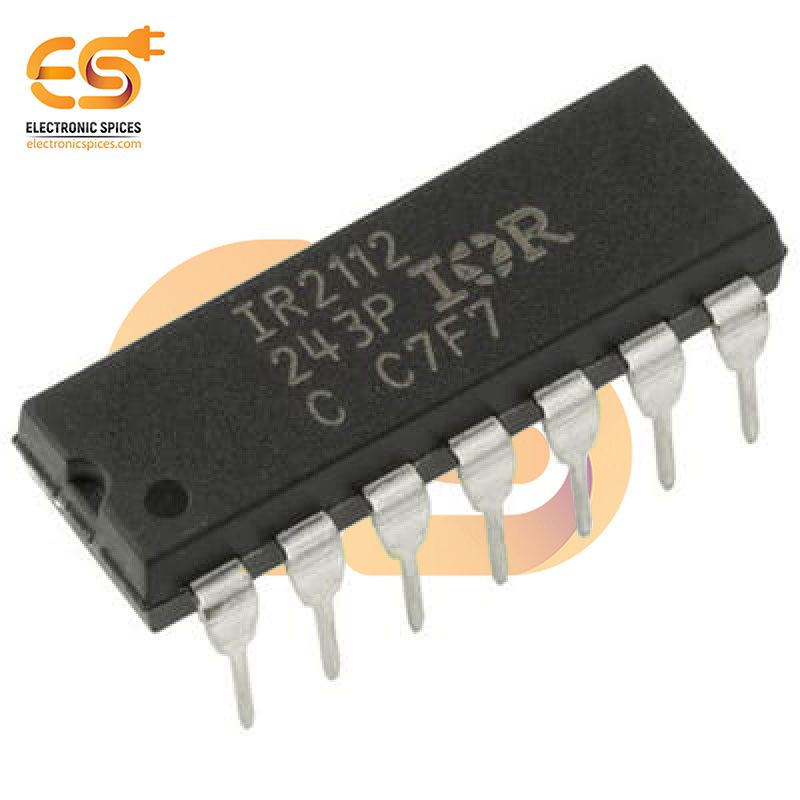

IR2112 High and Low Side Driver IC (DIP-14 Package)
The IR2112 is a high and low-side driver IC, available in a DIP-14 package, specifically designed to drive MOSFETs and IGBTs in half-bridge, full-bridge, and other high-voltage switching applications. It provides efficient and reliable gate drive solutions for circuits operating with high-voltage and high-speed requirements, making it suitable for motor control, inverters, and power supply systems. The IR2112 features floating channel technology, allowing the high-side driver to operate at voltages up to 600V. Its high-output current capability ensures fast switching of power transistors, reducing power losses and improving overall system efficiency. It also integrates protective features such as under-voltage lockout (UVLO) for both the high-side and low-side channels, enhancing the reliability of the device under adverse conditions.
Features:-
- Low power consumption
- Compact and Easy Integration
- High-Side/Low-Side Driver
- High Voltage Capability
- Under Voltage Lockout (UVLO)
