Specification:-
- High side floating supply voltage: -0.3 to 625 V
- High side floating supply offset voltage: VB -25 to VB +0.3 V
- High side floating output voltage: -0.3 to VB +0.3 V
- Low side and logic fixed supply voltage: -0.3 to 25V
- Low side output voltage: -0.3 to VCC+0.3 V
- Logic Supply Voltage: -0.3 to VSS+25 V
SKU: AU8524A

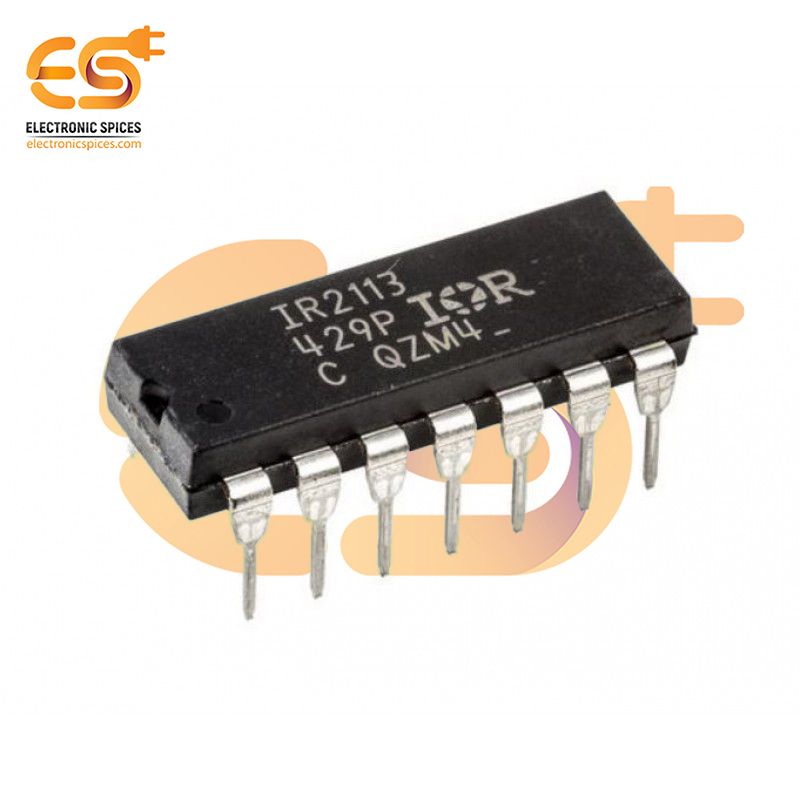

IR2113 High and Low Side Driver IC (DIP-14 Package)
The IR2113 is a high and low-side driver IC, housed in a DIP-14 package, designed to drive MOSFETs and IGBTs in half-bridge and full-bridge configurations. It is ideal for applications requiring efficient and reliable high-voltage switching, such as motor drives, inverters, and power supply systems. The IR2113 features separate high-side and low-side output channels, capable of driving high-speed power transistors with independent input control. The built-in bootstrap circuitry simplifies high-side drive implementation, enabling it to handle high-side floating voltages up to 600V. This IC provides high gate drive current to ensure rapid switching and reduce power loss.
Features:-
- Low power consumption
- Compact and Easy Integration
- High-Side/Low-Side Driver
- High Voltage Capability
- Under Voltage Lockout (UVLO)
