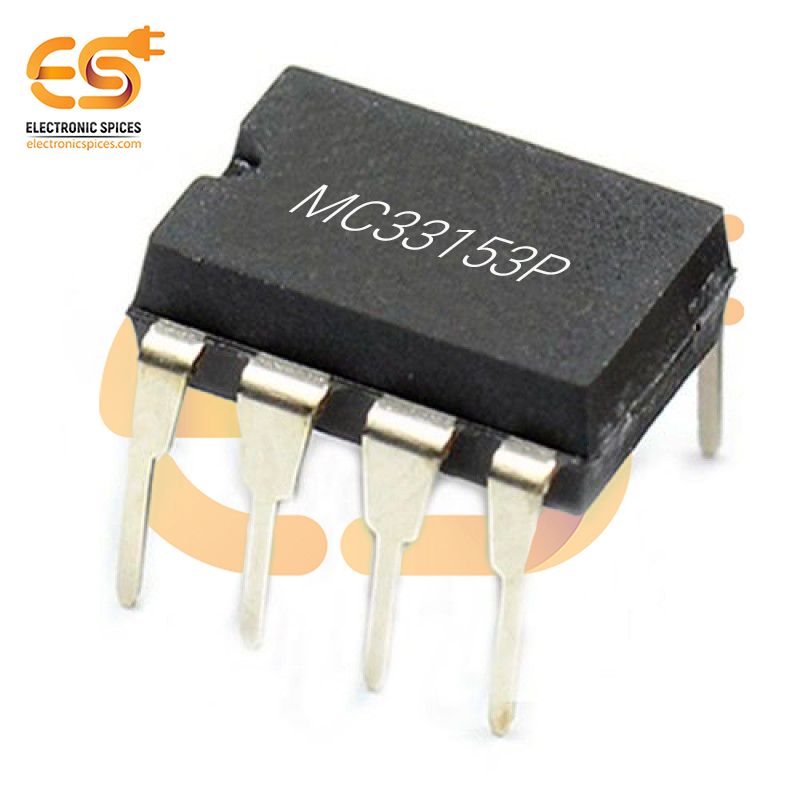

MC33153P Single IGBT Gate Driver IC (DIP-8 Package)
Specification:-
- Power Supply Voltage: 20 V
- Logic Input: VEE −0.3 to VCC V
- Current Sense Input: −0.3 to VCC V
- Blanking/Desaturation Input: −0.3 to VCC V
- Maximum Power Dissipation = 50°C: 0.56W
- Operating Junction Temperature: 150 °C
- Operating Ambient Temperature: -40 to 105 °C
- Storage Temperature Range: -65 to +150 °C
SKU: HQ8524A
MC33153P Single IGBT Gate Driver IC (DIP-8 Package)
The MC33153P is a single IGBT (Insulated Gate Bipolar Transistor) gate driver IC housed in a compact DIP-8 package. Designed to drive power IGBTs in industrial and automotive applications, this IC provides a robust solution for switching operations in high-power circuits. It is especially suitable for use in motor control systems, inverters, and uninterruptible power supplies (UPS). This gate driver features a high output drive capability, enabling it to control the IGBT gate with minimal switching delays effectively. It provides over-current protection (OCP) and under-voltage lockout (UVLO), ensuring safe and reliable operation under varying conditions. The low power consumption of the MC33153P enhances efficiency, while its fast switching speed supports high-frequency operation. The IC is optimized to handle high peak currents required for charging and discharging the gate capacitance of power IGBTs, improving overall system performance. With its compact DIP-8 package, the MC33153P is easy to integrate into a variety of PCB layouts.
Features:-
- Low power consumption
- Compact and Easy Integration
- Under-voltage lockout (UVLO)
- Fast switching speed for high-frequency operation
- Low power consumption
- Compact and reliable DIP-8 package
