Specification:-
- Power Supply Voltage: 20 V
- Logic Input: VEE −0.3 to VCC V
- Totem Pole Sink or Source Current: 1.5 A
- Maximum Power Dissipation = 50°C: 0.56 W
- Maximum Power Dissipation = 50°C: 1W
- Operating Junction Temperature: 150 °C
- Operating Ambient Temperature: 0 to 70 °C
- Storage Temperature Range: -65 to +150 °C
SKU: YR8524A

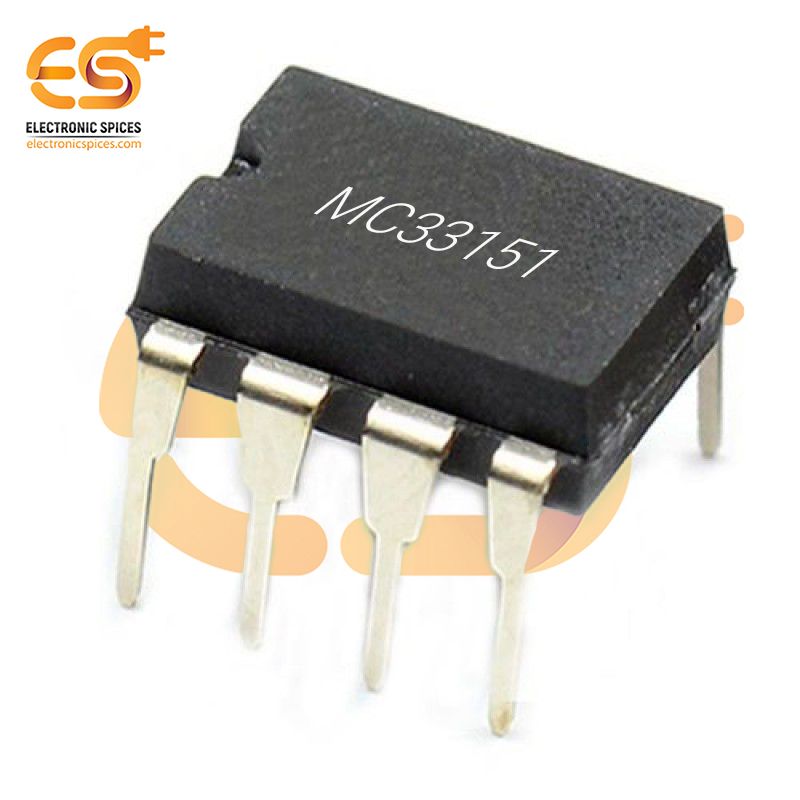

MC33151 High Speed Dual MOSFET Driver IC (DIP-8 Package)
The MC33151 is a high-speed dual MOSFET driver IC housed in a DIP-8 package, designed to provide efficient and reliable control of N-channel or P-channel MOSFETs. This IC is widely used in power management, motor control, and high-frequency switching applications due to its fast response time and robust performance. The MC33151 offers dual independent driver channels, allowing simultaneous or separate operation of two MOSFETs. It features high current drive capabilities, which ensures rapid charging and discharging of MOSFET gate capacitances, reducing switching losses and enhancing overall efficiency. The IC operates across a broad supply voltage range, making it suitable for a wide array of applications. Built-in over-current protection (OCP) and thermal shutdown mechanisms enhance the IC's reliability by safeguarding against adverse conditions. Additionally, the low propagation delay of the MC33151 makes it ideal for high-speed switching applications. Its low quiescent current further minimizes power consumption during operation.
Features:-
- Low power consumption
- Compact and Easy Integration
- Low propagation delay for fast switching
- Over-current protection (OCP)
- Thermal shutdown for enhanced reliability
- Low quiescent current for energy-efficient operation
