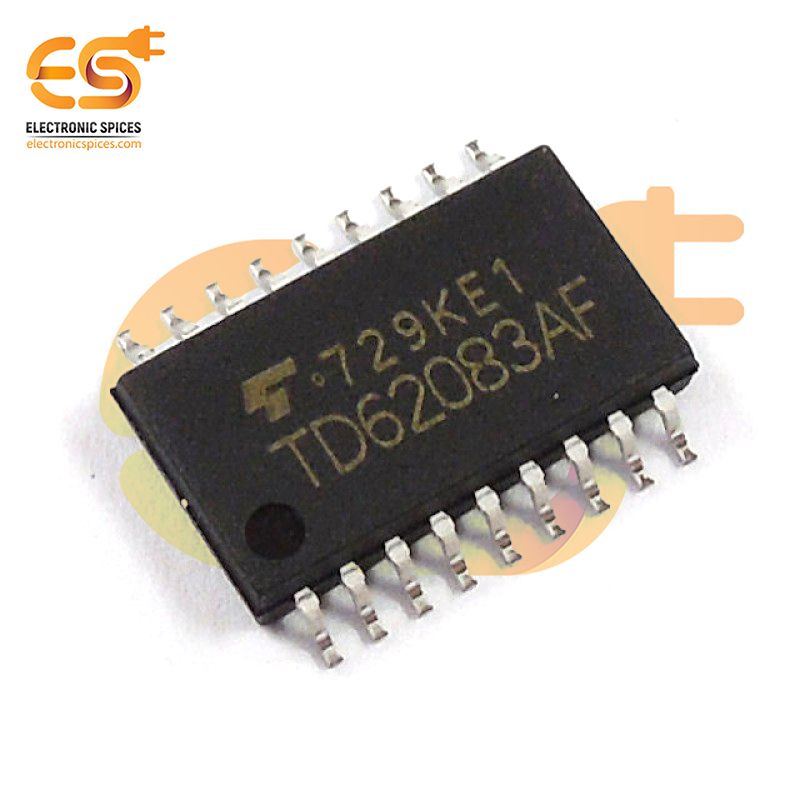

TD62083 8-Channel Darlington Sink Driver SMD IC

Specification:-

  • Output current (single output): 500 mA (max)
  • High sustaining voltage output: 50 V (min)
  • Output clamp diodes
  • Inputs compatible with various types of logic.
  • Package type-AFG: SOP-18 pin
Available in Pack Of:

SKU: BW8501A

MRP Rs. 274.80
Rs. 229.00 (Incl. Tax)
Rs. 194.07 (+18% GST extra)
Rs. 194.07 / pack of 1 = Rs. 194.07 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied
Quantity
Add to Cart

TD62083 8-Channel Darlington Sink Driver SMD IC

The TD62083 is an 8-channel Darlington sink driver SMD IC designed for interfacing and driving high-power loads such as lamps, relays, solenoids, and LEDs. It features eight open-collector outputs capable of sinking current up to 500mA per channel, making it well-suited for applications that require multiple load controls with substantial current needs. The IC is configured with Darlington pairs, which ensure a higher current gain, providing efficient current driving capability with minimal input current from the controlling logic. The TD62083 operates with a maximum output voltage of 50V, allowing it to manage medium to high voltage loads in various applications. This IC is integrated with clamp diodes for inductive load protection, ensuring the safety and durability of both the driver and connected devices by preventing voltage spikes during switching. As an SMD package, the TD62083 is compact, which facilitates its use in densely packed circuit designs and modern printed circuit boards (PCBs). Its high-density configuration is advantageous in applications that require efficient space management, such as automotive control systems, industrial machinery, and consumer electronics.

Features:-

  • High-Speed Operation
  • Wide Operating Voltage Range
  • Compact SMD package
  • High-Voltage Capability
  • 8-Channel Driver
