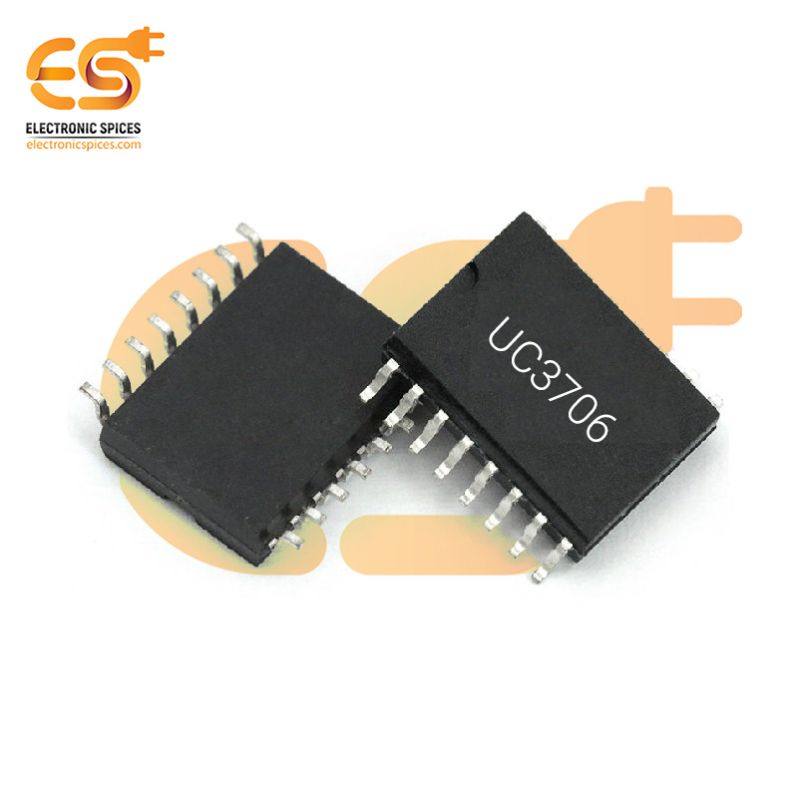

UC3706 Dual Output Mosfet Driver SMD IC
Specification:-
- Mounting Style: SMD/SMT
- Dual, 1.5A Totem Pole Outputs
- Voltage: 5 to 40V
- 16-Pin Dual-In-Line Package
- 20-Pin Surface Mount Package
- 40nsec Rise and Fall into 1000pF
SKU: JK8501A
UC3706 Dual Output Mosfet Driver SMD IC
The UC3706 is a dual output MOSFET driver SMD (Surface-Mount Device) IC designed for driving power MOSFETs in high-speed switching applications. It is commonly used in DC-DC converters, motor drives, and power inverters, where precise control of MOSFET switching is required for efficient power conversion. This IC features two independent output drivers capable of driving high- and low-side MOSFETs. The UC3706 provides low-side output drivers with a ground-referenced output and high-side output drivers with a floating output, enabling it to efficiently control complementary MOSFET pairs. It can handle high-speed switching with rise and fall times typically in the nanosecond range, making it suitable for high-frequency applications.
Features:-
- High-Speed Operatio
- Wide Operating Voltage Range
- Compact SMD package
- Surface Mount Package
- Dual MOSFET drivers
- Wide input voltage range
