SENSOR MODULES

5V-15V DC NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator

Specification:-

• Main chip: NE555
• Input Voltage: 5V-15V DC
• Maximum output current: 15MA
• Generate an adjustable pulse for MCU
• Generate an adjustable pulse, to control circuitry associated

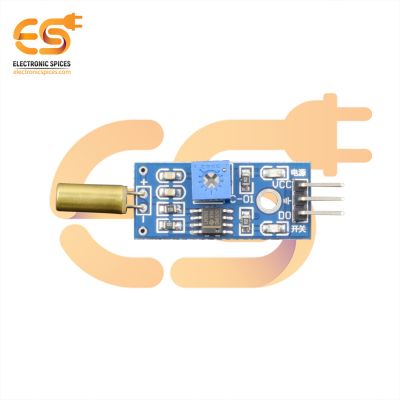

SW520D - Tilt sensor module

Specifications:-

1. Supply voltage: 3.3 V to 5V
2. Maximum output current : 15mA
3. Can work on low voltages
4. Maximum operating temperature: 0°C to + 80°C
5. Easy interface
6. Long life

9 mm Electret condenser microphone sounds sensors pack of 100pcs

Specification:-

1. Operating Voltage  :  2V to 10V
2. Current consumption  :  0.5mA (max)
3. Recommended operating voltage  :  2V
4. Operating Frequency  :  20Hz to 16,000Hz
5. Impedance  :  <2.2kΩ
6. Package includes : 100 pieces

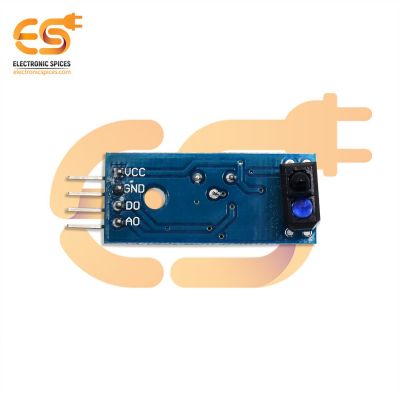

TCRT5000 Dual Channel Line Tracking sensor module

Specifications:-

1. Module model : TCRT5000
2. Working voltage : DC 3.5V to 5V
3. Output channel : 0/1
4. Detect distance : 1-25mm
5. Focal distance : 2.5mm
6. IC name : LM393
7. Inbuilt indicator light
8. Also, built in potentiometer for sensitivity

Normally Closed Vibration Sensor Switch

Specifications:-

• High sensitivity
• Moisture-proof
• Dust-proof
• Open resistance : 10M Ohm
• Closed resistance: 10 Ohm

4X4 16 Matrix Membrane Keypad Switch-16 Key

Specification:-

• Circuit Rating: 35V (DC), 100mA, 1W
• Compatible Devices: Laptop
• Keyboard Description: Membrane
• Special Feature: Waterproof
• Temperature: from 40,90% to 95%, 240 hours

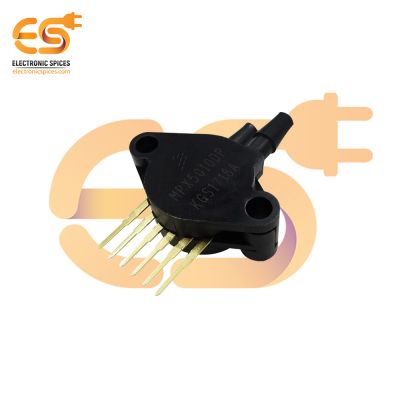

MPX5010DP Pressure 0-10KPa transmitter sensor module

Specifications:-

1. Model name : MPX5010DP
2. Input voltage : 4.75V – 5.25V
3. Operating pressure range : 0 - 10k/pa
4. Pressure type : Differential
5. Number of pins : 6
6. Operating temp. range : -40°C to +125°C

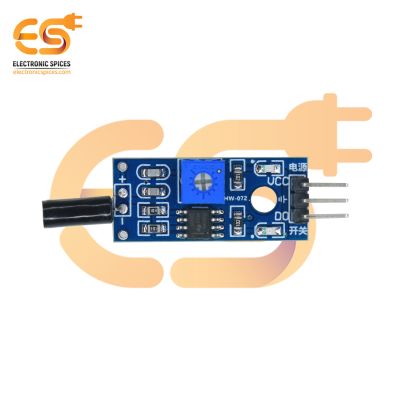

SW1801 – Vibration sensor module

Specifications:-

• Operating Voltage: 3.3V to 5V DC
• Operating Current: 15mA
• LEDs indicating output and power
• Small, cheap, and easily available
• Bolt holes for easy installation

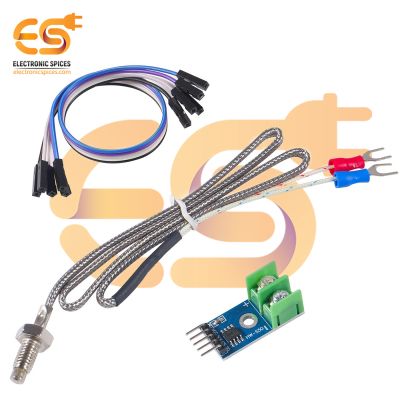

MAX 6675 Module with K Type Thermocouple Sensor

Specification:-

• Operating Voltage: 3.0V to 5.5V
• Interface: SPI
• Resolution: 0.25°C
• Temperature Range(°C): 0 to +1024
• K-type temperature probe
• Application: For Arduino, Raspberry Pi etc.

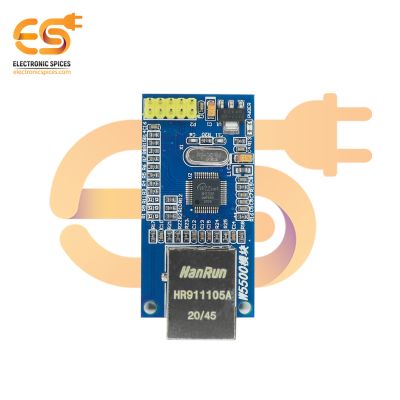

W5500 Ethernet Network Modules for Arduinos

Specifications

• Type: Drive IC
• 3.3 V or 5 V level.
• LAN Ethernet: 10/100Mbps
• Module test: test software
• W5500 hardware initialization pen

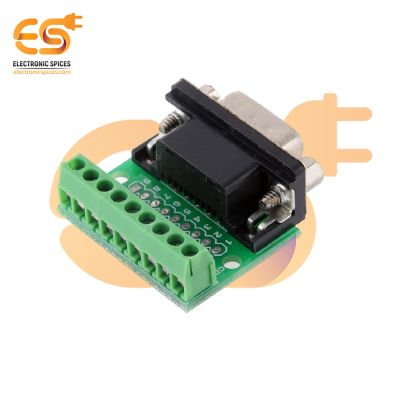

DB9 Male Screw Terminal to RS232 RS485 Conversion Board

Specification:-

• Connector Type: DB9 Male
• Screw Terminal: 9
• Supported Protocols: RS232, RS485
• All-copper DR9 seat
• Mounting Hole(mm): 3 mm
• Dimensions: 40mm x 37mm x 15mm (approx)
• High-quality PCB material

Infrared Eye Blink Sensor with Goggles

Specification:-

• TTL output 5V or 0V
• This module works on +5 V DC.
• Three pins GND (ground), 5V, OP (output)
• EYE BLINK indication by LED
• Can be used for counting the Eye Blinking frequency of a person.
