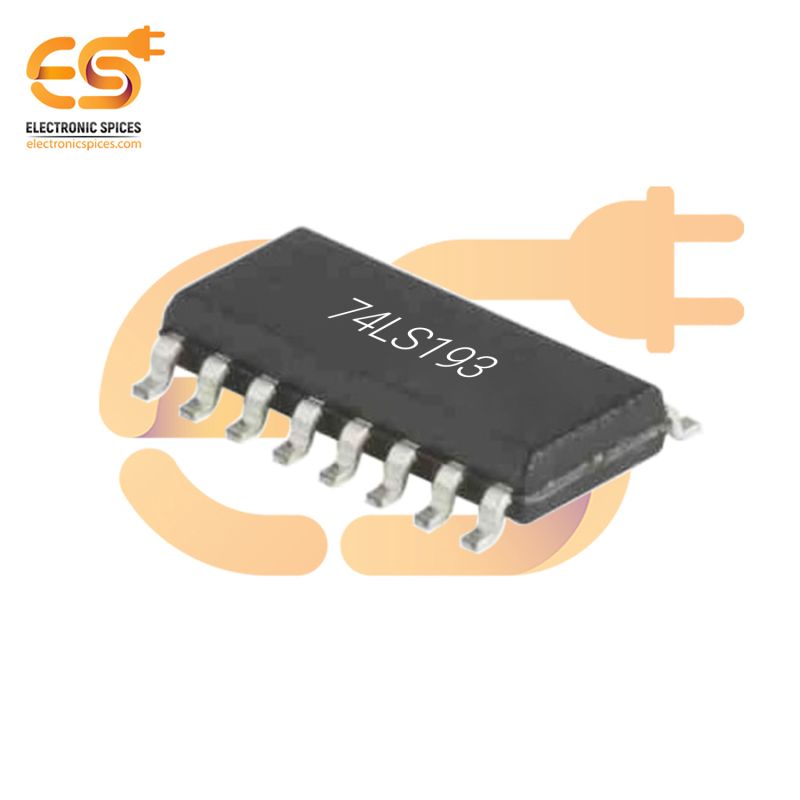

74LS193 Binary Up/Down Counter with Clear SMD IC

74LS193 Binary Up/Down Counter with Clear SMD IC

The 74LS193 Binary Up/Down Counter with Clear SMD IC is a highly functional and versatile integrated circuit used for counting operations in digital systems. It is a 4-bit synchronous counter that can count both up and down, making it suitable for applications that require bidirectional counting. This IC is designed to handle binary counting sequences from 0 to 15 (4-bit) and can be easily cascaded with additional counters for larger counting ranges. One of the key features of the 74LS193 is its synchronous operation, which ensures that all the outputs change simultaneously with the clock pulse, reducing the risks of counting errors due to propagation delays. It comes with separate clock inputs for both the up and down counting functions, allowing precise control over the direction of the count. The counter also includes a clear (reset) input that sets the output back to zero, enabling a quick reset of the counting sequence when needed. In an SMD (Surface-Mount Device) package, the 74LS193 is compact and suitable for space-constrained circuit boards, making it ideal for modern electronic applications where minimizing the size of components is essential.

Features:-

• High-Speed Operation
• Wide Operating Voltage Range
• Low Power Consumption
• Compact SMD Package
