Specification:-
- Supply voltage: 50 V
- Output current (peak): +-1 V
- Output current (continuous): +-0.75 V
- Output current: 750 mA
- Logic supply voltage: 7 A
- Logic input voltage range: -0.3 to 7 V
- Sense Sense output voltage: 1.5 W
- Junction temperature: 150 °C
- Operating temperature range: -20 to 85 °C
- Storage temperature range: -55 to 150 °C
SKU: AE8524A

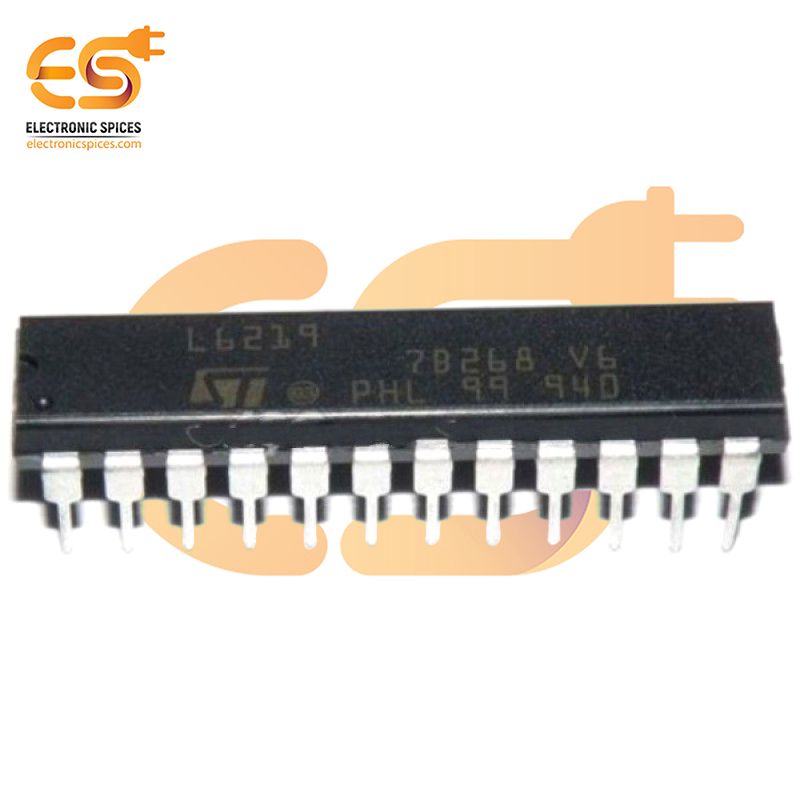

L6219 Stepper Motor Driver IC (DIP-24 Package)
The L6219 is a Stepper Motor Driver IC packaged in a DIP-24 form factor, designed for driving bipolar stepper motors with precision and efficiency. This integrated circuit features a dual H-Bridge configuration, enabling it to control two separate windings of a bipolar stepper motor simultaneously. The L6219 is capable of driving motors with high current up to 3A per phase, making it suitable for a wide range of stepper motors used in industrial, robotics, and automation applications. Key features of the L6219 include microstepping capability, which allows for smoother motor operation and finer position control by dividing each step into smaller microsteps. This results in reduced vibrations and improved motion accuracy. The IC also includes overcurrent protection, thermal shutdown, and under-voltage lockout to safeguard against potential damage due to overheating or power supply issues. With a wide operating voltage range from 8V to 45V, the L6219 can be used in various stepper motor applications, offering flexibility in power supply requirements.
Features:-
- Low power consumption
- Compact and Easy Integration
- Built-in protection diodes
- Internal PWM current control
