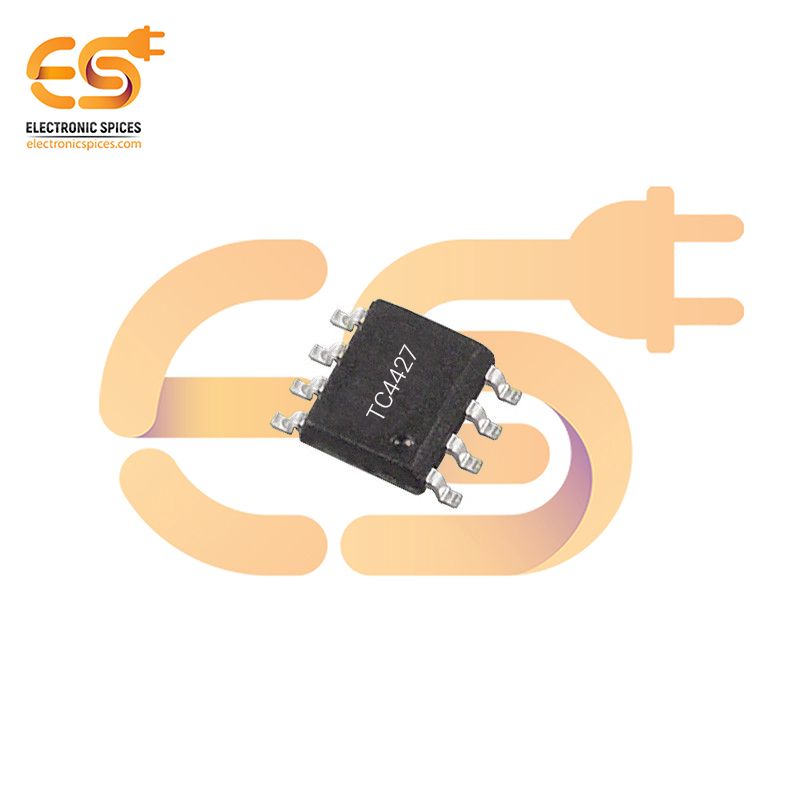

TC4427 Power MOSFET Driver SMD IC
Specification:-
- High Peak Output Current: 1.5A
- Input Withstands Negative Inputs Up to 5V
- Input Supply Voltage Operating Range: – 4.5V to 18V
- Short Delay Times: 40 ns (typical)
- High Capacitive Load Drive Capability: 1000 pF in 25 ns (typical)
SKU: FI8501A
TC4427 Power MOSFET Driver SMD IC
The TC4427 is a dual power MOSFET driver SMD IC designed to drive large gate-capacitance power MOSFETs or insulated-gate bipolar transistors (IGBTs) efficiently. It features two independent high-speed drivers that can source and sink peak currents up to 1.5A. This makes it suitable for applications requiring rapid and reliable switching of MOSFETs, such as in DC-DC converters, motor control circuits, and power management systems. One of the main advantages of the TC4427 is its low propagation delay, which enhances system performance by ensuring faster switching times. The IC also boasts a wide operating voltage range of 4.5V to 18V, offering versatility in different power environments. Its low output impedance and high current-driving capability help reduce switching losses and increase the overall efficiency of the power circuit. The TC4427 is designed with robust features, including under-voltage lockout protection, which prevents erratic operation during low-voltage conditions, thereby enhancing system reliability. It comes in a compact SMD package that facilitates easy integration into densely packed PCBs, making it suitable for modern electronic devices where space conservation is a priority.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Compact SMD package
- High-Voltage Capability
