IC

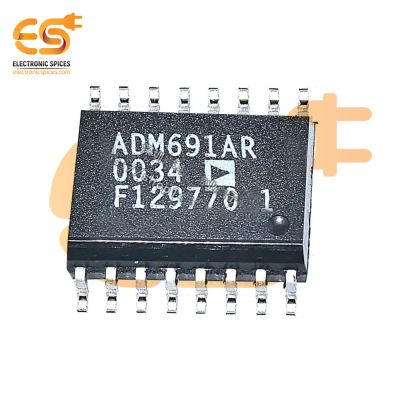

ADM691AR Supervisor SMD IC 1-Channel 16-SOIC

Specification:-

• Package: SOIC-16 (0.295", 7.50mm)
• No. of Pins: 16
• Mounting Style: SMD/SMT
• Supply Voltage-Max (Vsup): 5.5 V
• Supply Voltage-Min (Vsup): 4.75 V
• Supply Voltage-Nom (Vsup): 5 V
• Operating Temperature: -40°C to 85°C

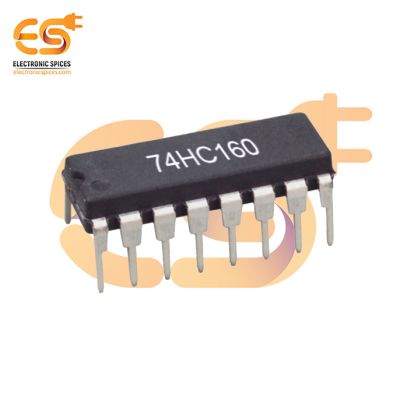

74HC160 Presettable Synchronous BCD Decade Counter IC DIP-16 Package

Specification:-

• Number of pins: 16
• Counter Type: Presettable
• Propagation Delay: 37ns
• Mounting Type: Through Hole
• Wide operating voltage range: 2 to 6V
• Operating Temperature (°C): − 55°C to + 125°C

74LS153 Dual 1-of-4 Line Data Selectors/Multiplexers SMD IC

Specification:-

• Mounting: SMD
• Frequency: 40 MHz
• Power Dissipation: 95 mW
• Supply Voltage range: 4.5 to 5.5V
• Output Current (High): -0.4mA
• Output Current (Low): 8mA
• Operating Temperature: -55°C to 125°C

MCP41010 8-Bit Digital 10K Potentiometer with SPI Interface IC

Specification:-

• Single supply operation: 2.7V – 5.5V
• All inputs and outputs w.r.t. VSS: -0.6V to VDD +1.0V
• Storage temperature: -60°C to +150°C
• Ambient temp. with power applied: -60°C to +125°C
• ESD protection on all pins: ≥ 2 kV

TP223-BA6 IC (SOT23-Package) Pack of 2

Specification:-

• Operating voltage 2.0V~5.5V
• Operating current: 3V
• Startup Calibration Delay: 0.5 Sec
• Capacitance: 0~50pF
• Number of pin: 6
• Simple to Use

UPC4570 Low Noise Dual Ultra Operational Amplifier SMDIC

Specification:-

• IC Name: UPC4570IC
• Package/Case: SMD-8
• Supply Voltage Range: ±3V to ±15V
• Input Offset Voltage: Typically 0.5 mV.
• Input Bias Current: Typically 50 nA.
• Output Drive Capability: Can drive loads down to 600Ω.

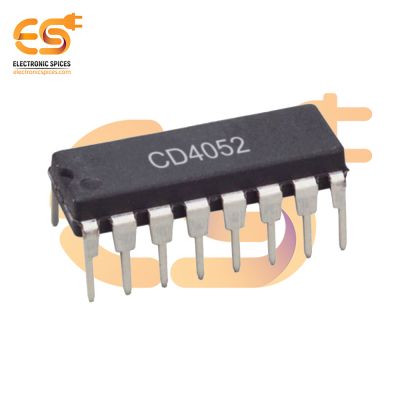

CD4052 Differential 4-Channel Multiplexer/Demultiplexer IC (DIP-16 Package)

Specification:-

• DC Supply Voltage (VDD) : −0.5VDC to +18VDC
• Input Voltage (VIN) : −0.5VDC to VDD + 0.5VDC
• Storage Temperature Range (TS) : −65°C to +150°C
• Power Dissipation (PD) Dual-In-Line: 700 mW
• Lead Temperature (TL) : 260°C
• Matched switch characteristics: ∆RON = 5Ω (typ.) for VDD − VEE = 15V
• High “OFF” resistance: channel leakage of ±10 pA (typ.) at VDD − VEE = 10V

ATMEGA128L-8MU-Microcontroller IC Microchip 8-Bit

Specification:-

• Package: QFN-64 (9x9)
• No. of Pins: 64Pins
• Supply Current-Max 5.5 mA
• Supply Voltage-Max:  5.5 V
• Supply Voltage-Min: 3 V
• Operating Frequency Max: 8MHz
• Program Memory Size: 128KB (64K x 16)
• Operating Temperature: -40°C to 85°C

74HC374 3-State Output Octal D-Type Flip-Flop SMD IC

Specification:-

• Mounting: SMD
• Power Dissipation: 500 mW
• Supply Voltage: − 0.5 to + 7.0V
• DC Input Voltage:  − 1.5 to VCC + 1.5V
• DC Output Voltage: − 0.5 to VCC + 0.5V
• Clamp Diode Current: ± 20
• Operating Temperature: -65°C to 150°C

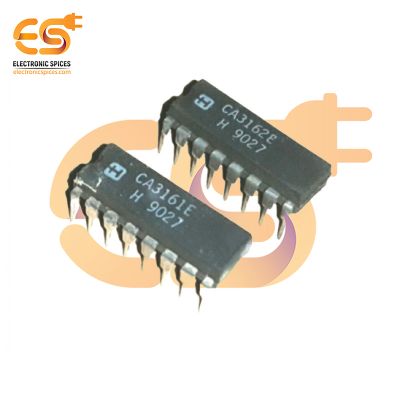

CA3161 IC + CA3162 IC Pair A/D Converter for 3 Digit Display DIP-16 Package

Specification:-

CA3161 IC

• DC V SUPPLY: +7.0 V
• Input Voltage: +5.5 V
• Output Voltage: +7 V
• Power Dissipation: 18mW (Typ)

CA3162 IC

• DC V SUPPLY: +7.0 V
• Input Voltage: +15 V
• Temperature Range: 0°C to 75°C
• Low Speed (4Hz) or High Speed (96Hz) Conversion Rate

IL2596-ADJD2T-P Switch Voltage Regulator Adjustable Output 5-Pin TO-263 Pack of 800

Specification:-

• Case/Package: TO-263-5L
• Number of Pins: 5

L272 Dual Power Operational Amplifiers SMD IC

Specification:-

• IC Name: L272
• Output current to 1 a
• Operates at low voltages
• Single or split supply
• Ground compatible inputs
• Low saturation voltage
• Thermal shutdown
