Specification:-
- Mounting: SMD
- Number of: 14 Pins
- Voltage Rating: 4.75 to 5.25V
- Storage Temperature Range: 0°C to + 70°C
- Large Operating Voltage Range
- Four Independent NOR Gates
- High-Speed Low Power CMOS Type
SKU: QS8501A

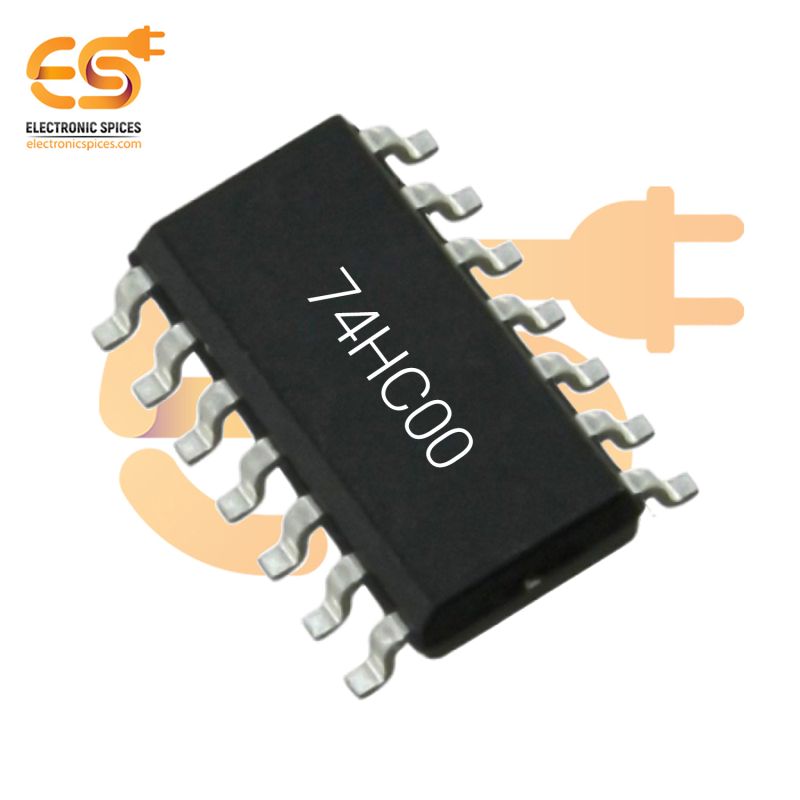

74HC00 Quad 2 Input NAND Gate SMD IC
The 74HC00 is a Quad 2-Input NAND Gate IC available in an SMD (Surface Mount Device) package, featuring four independent NAND gates in one chip. Each gate performs the logic NAND operation, outputting a low (logic 0) only when both inputs are high (logic 1); otherwise, the output is high (logic 1). This fundamental logic function is crucial for implementing a wide range of digital circuits. Operating at a supply voltage range from 2V to 6V, the 74HC00 is versatile and compatible with standard CMOS logic levels, making it suitable for various system designs. It has a high-speed operation, with a typical propagation delay of approximately 8ns at a 5V supply voltage. This makes it suitable for high-speed digital circuits that require reliable performance. The 74HC00 is built with low power consumption, supporting energy-efficient and battery-operated devices. Its SMD packaging is ideal for compact designs, allowing engineers to integrate it into space-constrained circuit boards efficiently.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Low Power Consumption
- Compact SMD Package
