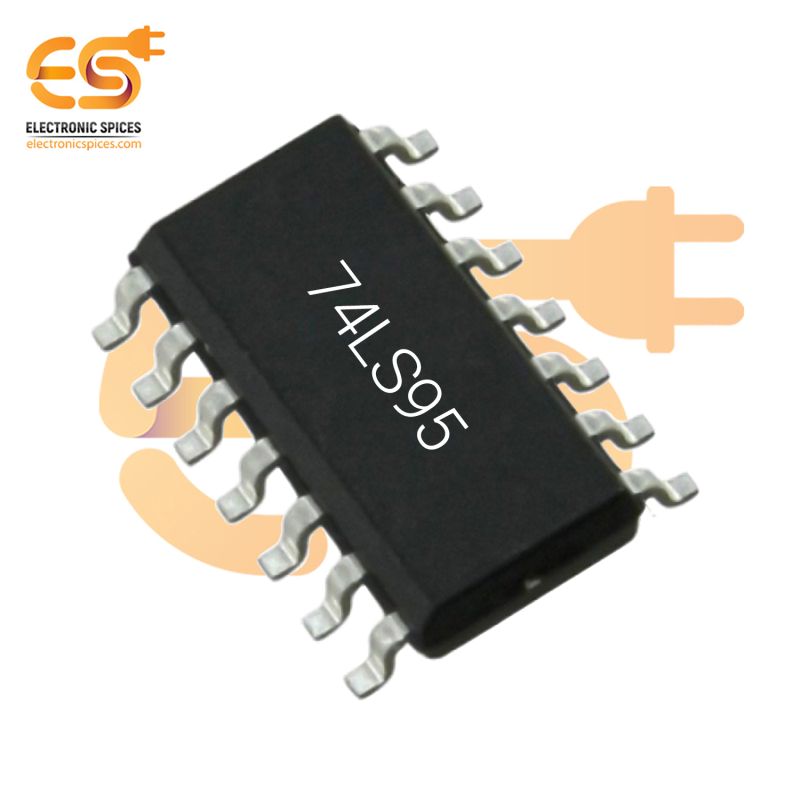

74LS95 4-bit Parallel-Access Shift Register SMD IC
Specification:-
- Mounting: SMD
- Input levels: CMOS level
- Supply Voltage range: 4.5 to 5.5V
- Output Current: –0.4mA
- Output Current: 8mA
- Operating Temperature: 55°C to 125°C
SKU: ZQ8521A
74LS95 4-bit Parallel-Access Shift Register SMD IC
The 74LS95 4-bit Parallel-Access Shift Register in an SMD (Surface-Mount Device) format is a versatile IC designed for serial shifting and parallel loading of data. This IC allows for easy manipulation of 4-bit data, making it useful in applications requiring both sequential and simultaneous data handling. The 74LS95 has two main operational modes: parallel load, where data can be loaded directly into the register through parallel input pins, and shift-right, where data is serially shifted with each clock pulse. With TTL compatibility and low power consumption characteristics of the Low Power Schottky (LS) series, this IC supports high-speed operations while consuming minimal power, making it ideal for efficient, high-performance digital systems. Each bit of data can be accessed through parallel output pins, allowing simultaneous readout of the stored 4-bit value, while the serial output enables continuous data flow in the shift mode.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Low Power Consumption
- Compact SMD Package
- 4-bit Shift Register
