Specification:-
- High side floating supply voltage: -0.3 to 625 V
- High side floating supply offset voltage: VB -25 to VB +0.3 V
- High side floating output voltage: -0.3 to VB +0.3 V
- Low side and logic fixed supply voltage: -0.3 to 25V
- Low side output voltage: -0.3 to VCC+0.3 V
- Logic supply Voltage: -0.3 to VSS+0.3 V
SKU: GS8524A

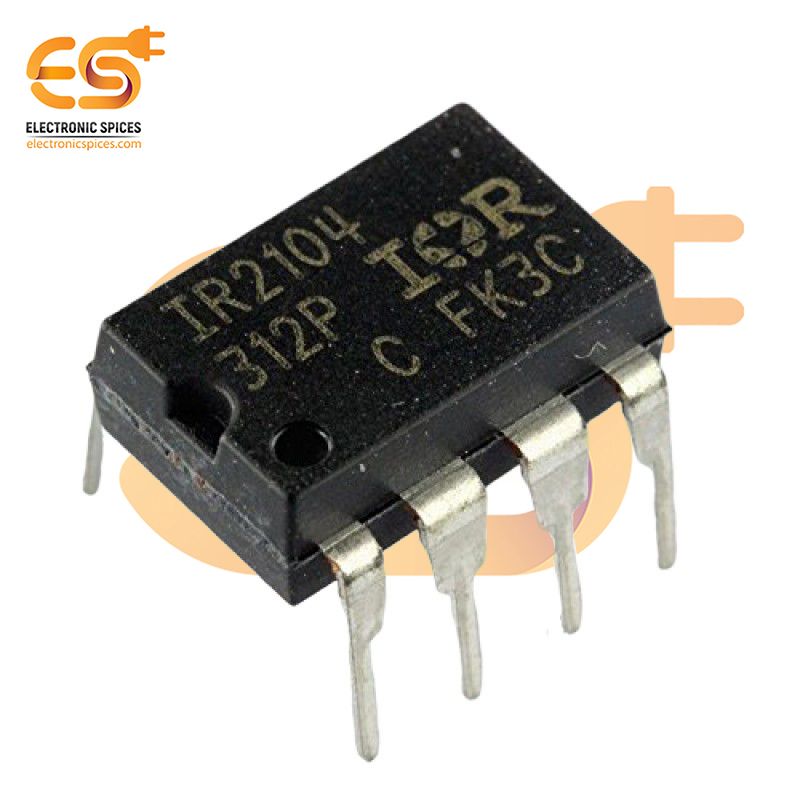

IR2104 Half Bridge Driver IC (DIP-8 Package)
The IR2104 is a high-performance half-bridge driver IC designed for driving N-channel power MOSFETs and IGBTs in half-bridge configurations. Encased in a compact DIP-8 package, it is ideal for space-constrained designs. The IC features a floating high-side driver that can operate up to 600V, making it suitable for high-voltage applications. The IR2104 offers independent high-side and low-side control inputs, enabling flexible drive configurations. It includes an integrated under-voltage lockout (UVLO) function for both channels, which protects the power devices by ensuring proper gate drive voltage levels. The IC also features a robust logic input immunity to prevent false triggering from noise, enhancing its reliability in noisy environments. Its fast switching capabilities and low propagation delay make it suitable for high-frequency operations, improving overall system efficiency.
Features:-
- Low power consumption
- Compact and Easy Integration
- High-Side/Low-Side Driver
- High Voltage Capability
